Home ProductsMicroscope Heating StagePrecision Heated Microscope Stage with ±0.1°C Stability, 1000°C Range, and 50°C/min Heating Rate
Precision Heated Microscope Stage with ±0.1°C Stability, 1000°C Range, and 50°C/min Heating Rate
Precision Heated Microscope Stage with ±0.1°C Stability, 1000°C Range, and 50°C/min Heating Rate Precision Heated Microscope Stage with ±0.1°C Stability, 1000°C Range, and 50°C/min Heating Rate Precision Heated Microscope Stage with ±0.1°C Stability, 1000°C Range, and 50°C/min Heating Rate

Precision Heated Microscope Stage with ±0.1°C Stability, 1000°C Range, and 50°C/min Heating Rate

Product Details:
Place of Origin: Suzhou, China
Brand Name: GoGo
Certification: ISO 9001:2015 / ISO 14001:2015 / ISO 45001:2018
Model Number: H1000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: CNY 30000~600000/set
Packaging Details: Cardboard box + wooden box
Delivery Time: 30~60 work days
Payment Terms: T/T
Supply Ability: 1set/day
Contact Now Chat Now

Detail Information
Name: Heated Microscope Stage Cooling/Heating Method: Resistance Heating
Temperature Range: RT~1000℃ Temperature Stability: ±0.1℃
Heating/Cooling Rate: Maximum Heating Rate：50℃/min,Controllable Cooling Rate Sample Holde: Ceramic;20mm*20mm
Optical Path: Reflection Top Window Size: φ25mm
Window Material: JGS2 Fused Silica Glass (Transmission Range: 220 Nm - 2500 Nm), Manually Removable And Replaceable. Distance From Window Upper Surface To Sample Holder Upper Surface: 7mm
Chamber Height: 6mm Chamber: Atmosphere
Dimensions: 95mm*160mm*24mm Net Weight: 0.8kg
Basic Configuration: TNEX*1、Ultra-High-T Heating Stage*1、 Temperature Controller*1、Recirculating Chiller*1、Cables、Tubing、and Accessories Optional: Adapter Plate/Customized Recirculating Chiller/Computer Host/ Customed Temperature Control Software
Highlight:

Precision heated microscope stage with 0.1°C stability

,

Microscope heating stage 1000°C range

,

Heated microscope stage 50°C/min heating rate

Product Description

Precise Control Heated Microscope Stage High Stability Temperature Controlled Microscope Stages
High-Temperature Heating Stage with Precise Control up to 1000°C and Ceramic Sample Holder for Metallographic and Raman Observation
Product Overview

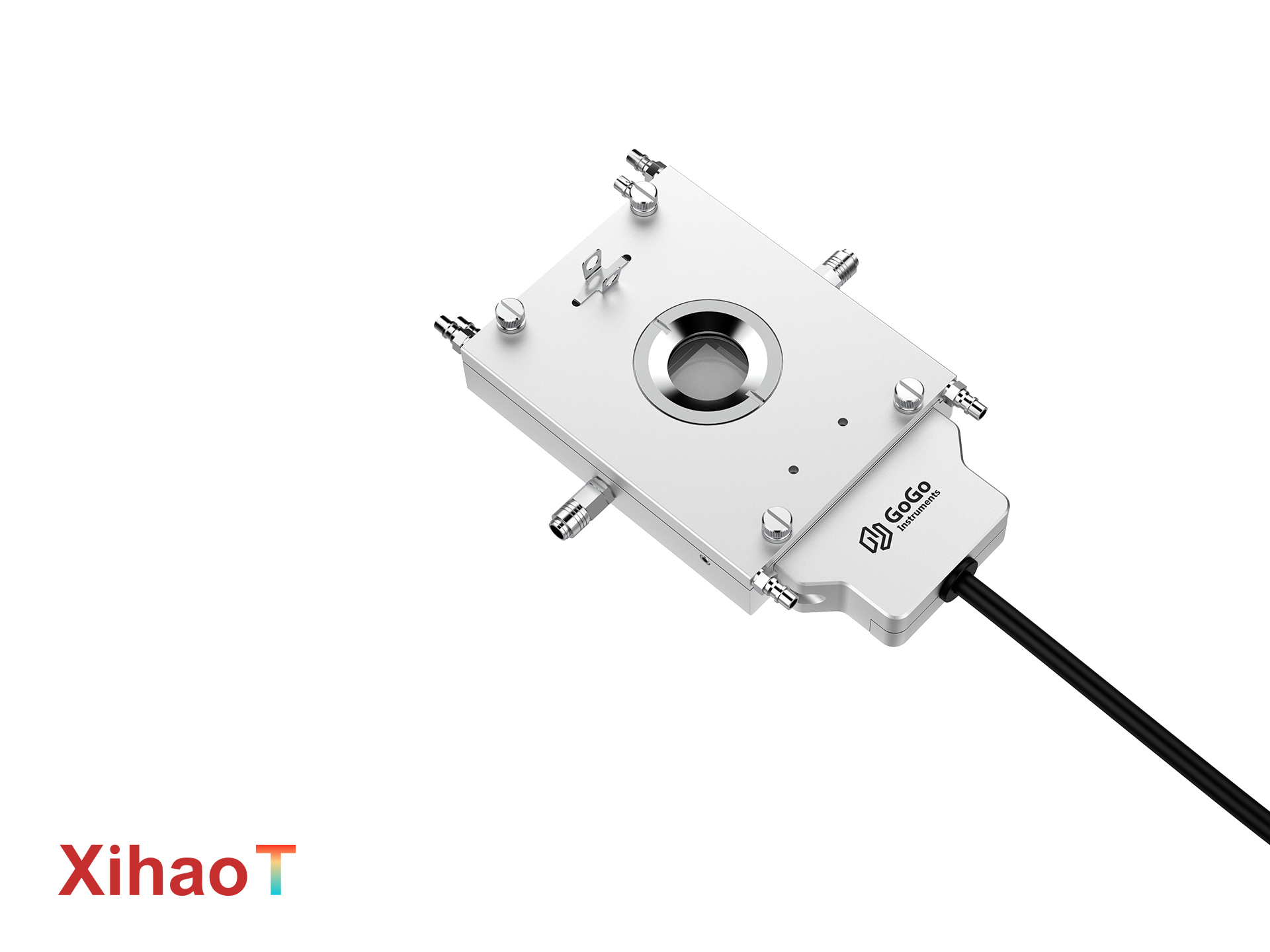

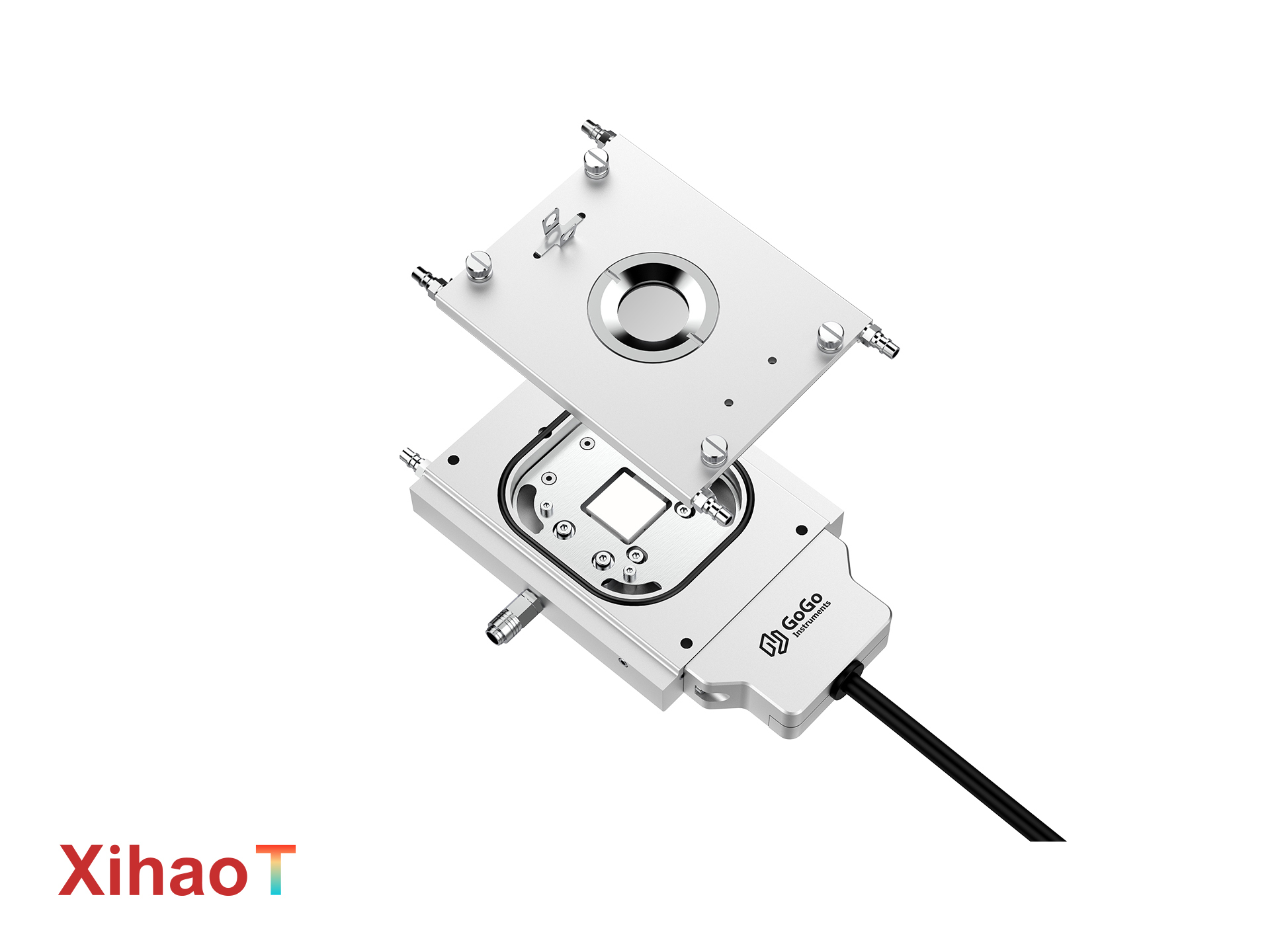

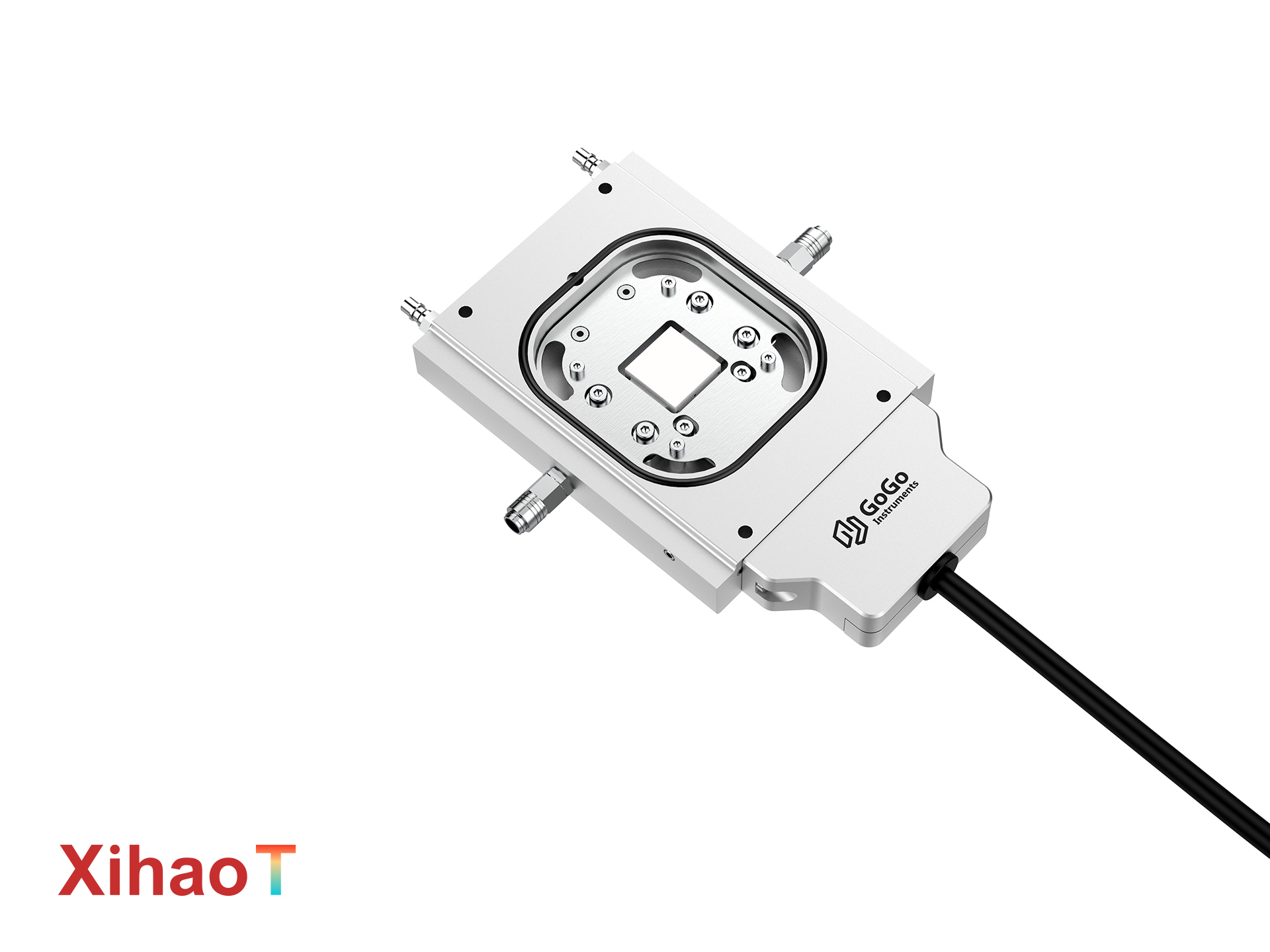

The GoGo H1000 is a precision-engineered Microscope Heating Stage designed for reliable in-situ observation and analysis under high temperatures. Capable of operating from room temperature up to 1000°C with exceptional stability of ±0.1°C, this stage is an essential tool for real-time study of materials, phase transitions, and dynamic processes under a microscope. It features a durable ceramic sample holder and a large, high-transmission observation window, making it a versatile solution for a wide range of scientific and industrial applications. This complete system is seamlessly controlled by our integrated TNEX software platform.
Key Advantages
  • Superior Thermal Performance: Achieve highly stable and repeatable results with a wide 1000°C range and precise ±0.1°C temperature control.
  • Rapid & Controlled Thermal Cycling: Benefit from a fast 50°C/min heating rate and programmable, controlled cooling via the included recirculating chiller.
  • Excellent Optical Access for Observation: The large φ25mm top window and minimal 7mm working distance provide a clear, unobstructed view for high-quality microscope observation.
  • Complete Ready-to-Use System: The package includes everything needed: the Microscope Heating Stage, TNEX software, temperature controller, chiller, and all accessories, ensuring quick setup.
  • Globally Certified Quality: Manufactured under ISO 9001:2015, 14001:2015, and 45001:2018 certified processes, guaranteeing product reliability, safety, and environmental responsibility.
Technical Specifications
Parameter Value
Model H1000
Brand GoGo
Certifications ISO 9001:2015 / 14001:2015 / 45001:2018
Temperature Range RT ~ 1000°C
Temperature Stability ±0.1°C
Max Heating Rate 50°C/min
Sample Holder Ceramic, 20mm x 20mm
Optical Path Reflection
Top Window φ25mm, JGS2 Fused Silica (220-2500 nm)
Working Distance 7mm
Chamber Height 6mm
Dimensions 95mm x 160mm x 24mm
Net Weight 0.8kg
Software TNEX Control Platform
Included Heating Stage, Controller, Recirculating Chiller, Cables, Tubing
Target Markets & Applications
This professional Microscope Heating Stage is effectively utilized in growth markets worldwide, including Southeast Asia, the Middle East, Russia, and Africa. It serves a diverse clientele of universities, government and private research institutes, and high-tech manufacturing companies involved in materials science, metallurgy, geology, and electronics R&D.
Frequently Asked Questions
1. Is this Microscope Heating Stage compatible with my existing microscope?
Yes, its compact and standardized design ensures compatibility with most common optical and metallurgical microscopes for easy integration into your lab.
2. What software is used for control, and is it user-friendly?
The system is controlled by our intuitive TNEX software, which allows for precise temperature profiling, real-time monitoring, and data recording on a computer.
3. How is the stage cooled?
The included recirculating chiller provides active and controllable cooling, enabling rapid thermal cycling and protecting the stage's components.
4. Can I study samples under different atmospheres?
The sealed chamber allows for atmosphere control. Optional gas inlet/outlet ports can be considered for specific purging or gas flow requirements.
5. What support is available after purchase?
We provide comprehensive documentation, online resources, and responsive technical support to ensure your Microscope Heating Stage operates smoothly.
