Precise Control Heated Microscope Stage High Stability Temperature Controlled Microscope Stages

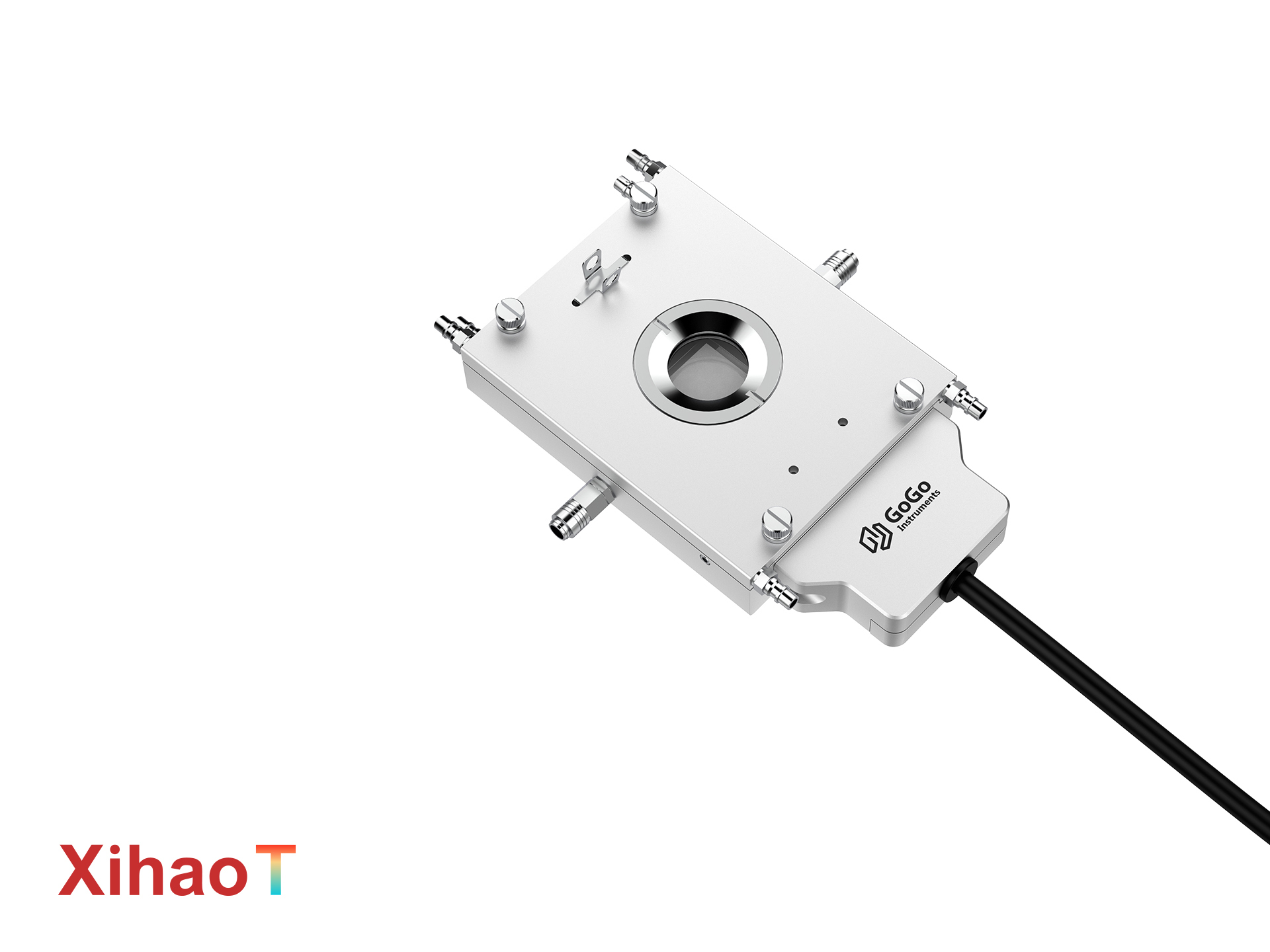

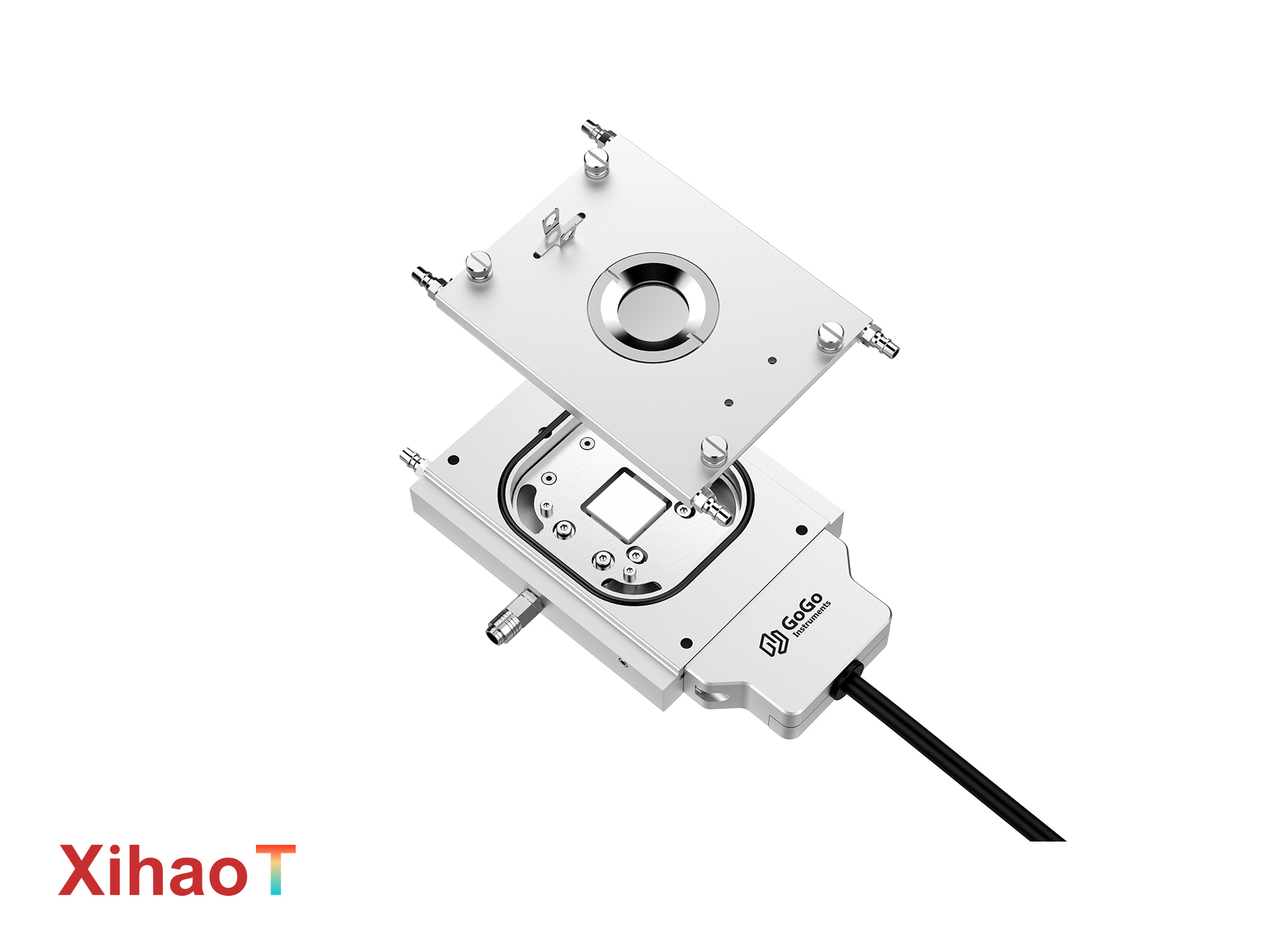

The GoGo H1200 is a precision-engineered Microscope Heating Stage designed for reliable in-situ observation and analysis under high temperatures. Capable of operating from room temperature up to 1200°C with exceptional stability of ±0.1°C, this stage is an essential tool for real-time study of materials, phase transitions, and dynamic processes under a microscope. It features a durable ceramic sample holder and a large, high-transmission observation window, making it a versatile solution for a wide range of scientific and industrial applications. This complete system is seamlessly controlled by our integrated TNEX software platform.

• Superior Thermal Performance: Achieve highly stable and repeatable results with a wide 1200°C range and precise ±0.1°C temperature control.
• Rapid & Controlled Thermal Cycling: Benefit from a fast 50°C/min heating rate and programmable, controlled cooling via the included recirculating chiller.
• Excellent Optical Access for Observation: The large φ25mm top window and minimal 7mm working distance provide a clear, unobstructed view for high-quality microscope observation.
• Complete Ready-to-Use System: The package includes everything needed: the Microscope Heating Stage, TNEX software, temperature controller, chiller, and all accessories, ensuring quick setup.
• Globally Certified Quality: Manufactured under ISO 9001:2015, 14001:2015, and 45001:2018 certified processes, guaranteeing product reliability, safety, and environmental responsibility.

This professional Microscope Heating Stage is effectively utilized in growth markets worldwide, including Southeast Asia, the Middle East, Russia, and Africa. It serves a diverse clientele of universities, government and private research institutes, and high-tech manufacturing companies involved in materials science, metallurgy, geology, and electronics R&D.

1. Is this Microscope Heating Stage compatible with my existing microscope?
   Yes, its compact and standardized design ensures compatibility with most common optical and metallurgical microscopes for easy integration into your lab.

2. What software is used for control, and is it user-friendly?
   The system is controlled by our intuitive TNEX software, which allows for precise temperature profiling, real-time monitoring, and data recording on a computer.

3. How is the stage cooled?
   The included recirculating chiller provides active and controllable cooling, enabling rapid thermal cycling and protecting the stage's components.

4. Can I study samples under different atmospheres?
   The sealed chamber allows for atmosphere control. Optional gas inlet/outlet ports can be considered for specific purging or gas flow requirements.

5. What support is available after purchase?
   We provide comprehensive documentation, online resources, and responsive technical support to ensure your Microscope Heating Stage operates smoothly.
