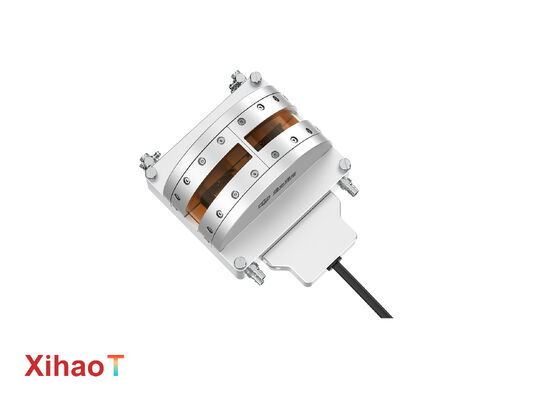

XRD Heating Stage Ultra High Temperature Stage Universal For Major XRD Brands

Product Name: GoGo XH1200 Ultra-High-Temperature Universal XRD Sample Stage for In-Situ Phase Analysis (up to 1200°C)

Product Introduction

The GoGo XH1200 is a premium XRD Sample Stage engineered to facilitate in-situ structural analysis of materials under extreme thermal conditions. Offering an exceptional temperature range from ambient to 1200°C with high stability of ±0.1°C, this stage enables researchers to study phase transitions, sintering behavior, and high-temperature stability of ceramics, catalysts, alloys, and advanced materials directly inside your X-ray diffractometer. Designed for universal compatibility, it features customizable mounting brackets for seamless integration with major instrument brands including Rigaku, Bruker, Thermo Fisher, Shimadzu, and Malvern Panalytical. This versatile XRD Sample Stage is an indispensable tool for advancing research in high-temperature material science and process development.

Key Advantages & Why Choose Our System

• Unrivaled High-Temperature Performance: Specifically engineered for long-term, stable operation up to 1200°C, this XRD Sample Stage allows for the direct observation of phase formation, decomposition, and thermal expansion in real-time, which is critical for the development of refractories, coatings, and energy materials.

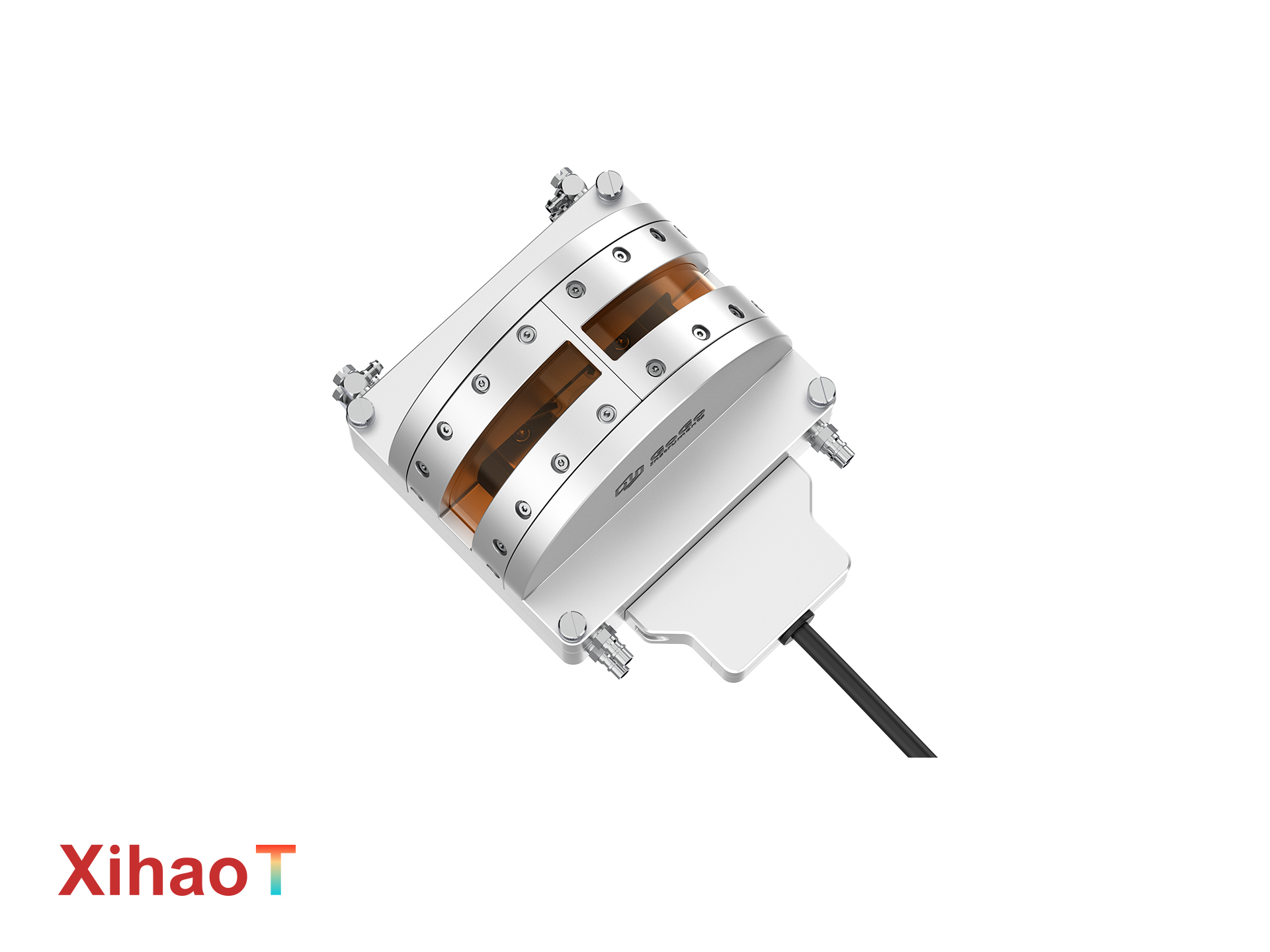

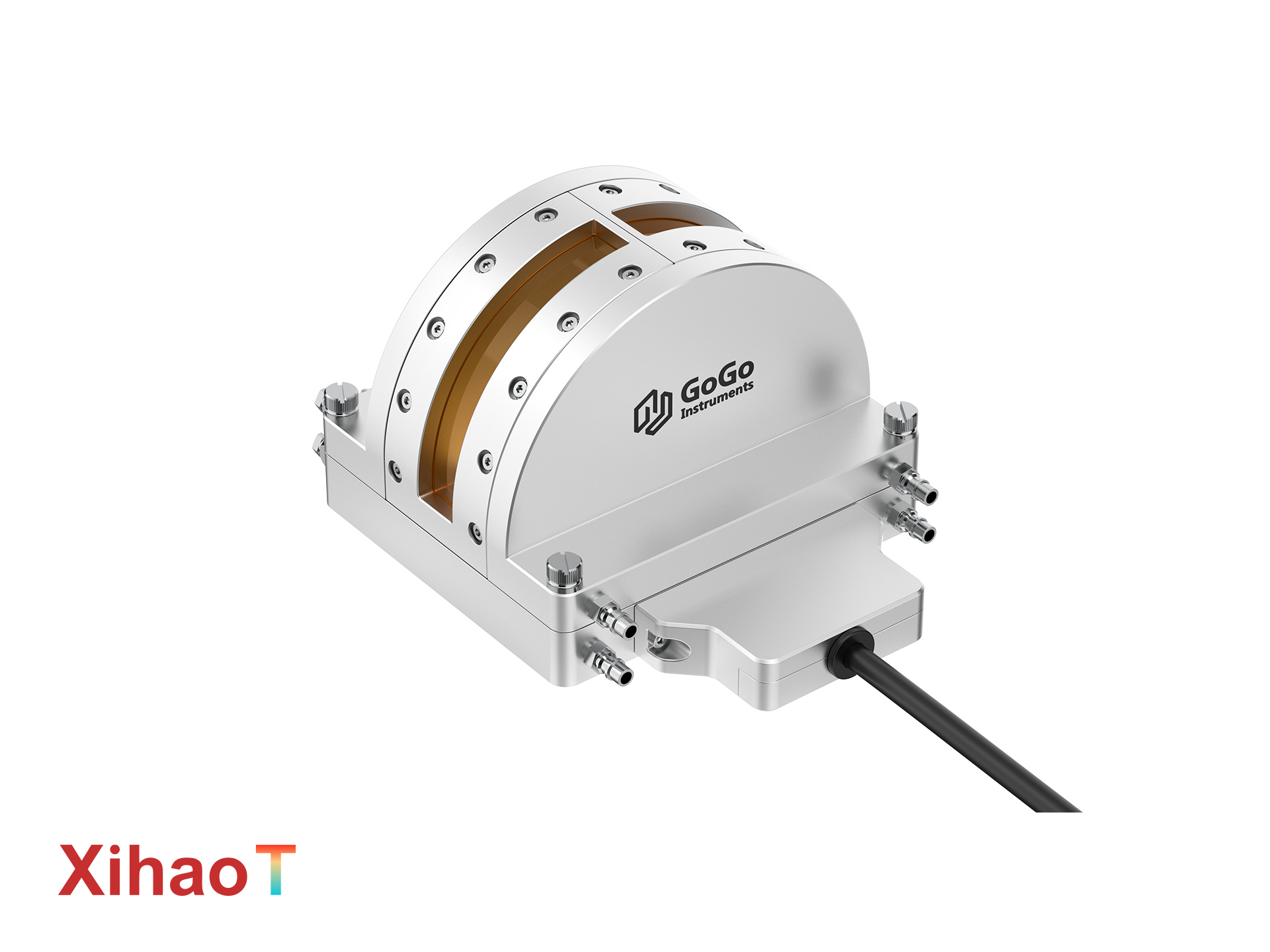

• Wide-Angle Data Integrity with Arc-Shaped Design: The innovative arc-shaped chamber, fitted with a low-absorption Kapton film window, provides an unobstructed 2θ diffraction angle range of 0° to 164°. This ensures the collection of complete, high-fidelity diffraction patterns without angular restrictions or data gaps.

• Universal Fit with Guaranteed Compatibility: We eliminate integration hurdles. Our service includes providing a customized mounting bracket precisely machined for your specific diffractometer model, ensuring a perfect mechanical and optical fit for reliable, repeatable experiments.

• Precision Thermal Ramp & Segment Control: Beyond simple setpoints, the integrated TNEX software provides sophisticated multi-mode control, including programmable ramp rates (0.1–20°C/min) and segment programming. This allows for simulating complex thermal histories and studying reaction kinetics during diffraction measurements.

• Certified Robustness for Demanding Applications: Manufactured under ISO 9001:2015, 14001:2015, and 45001:2018 certified quality systems, this XRD Sample Stage is built for durability and precision, ensuring reliable performance in rigorous academic and industrial R&D environments.

Technical Specifications

Target Markets & Clients

This advanced XRD Sample Stage is crucial for research and development in key global regions such as Southeast Asia, the Middle East, Russia, and Africa. It is the instrument of choice for university research groups, national laboratories, and industrial R&D teams in fields like metallurgy, ceramics, solid-state chemistry, and advanced manufacturing.

Frequently Asked Questions (FAQ)

1. For which materials is a 1200°C XRD Sample Stage essential?
   This stage is vital for studying ceramics (e.g., zirconia, alumina), high-temperature superconductors, catalyst calcination processes, metallurgical slags, and any material where phase stability or transformation above 1000°C is a key research parameter.

2. How do you ensure it fits my specific brand of diffractometer?
   Upon order confirmation, we request your diffractometer's make and model. We then provide a precision-engineered, machine-specific adapter bracket as part of the standard package, guaranteeing a perfect and secure fit to the goniometer.

3. Why is Kapton film used, and is it durable at high temperatures?
   Kapton film is chosen for its excellent X-ray transparency and remarkable thermal stability, maintaining integrity and low background signal across the entire operating range up to 1200°C.

4. What control does the TNEX software offer for high-temperature experiments?
   The TNEX software allows full automation. You can design complex profiles with slow, controlled ramps for studying subtle phase changes, or create sequences with multiple isothermal holds to investigate time-dependent phenomena at peak temperatures.

5. What is included in the basic configuration?

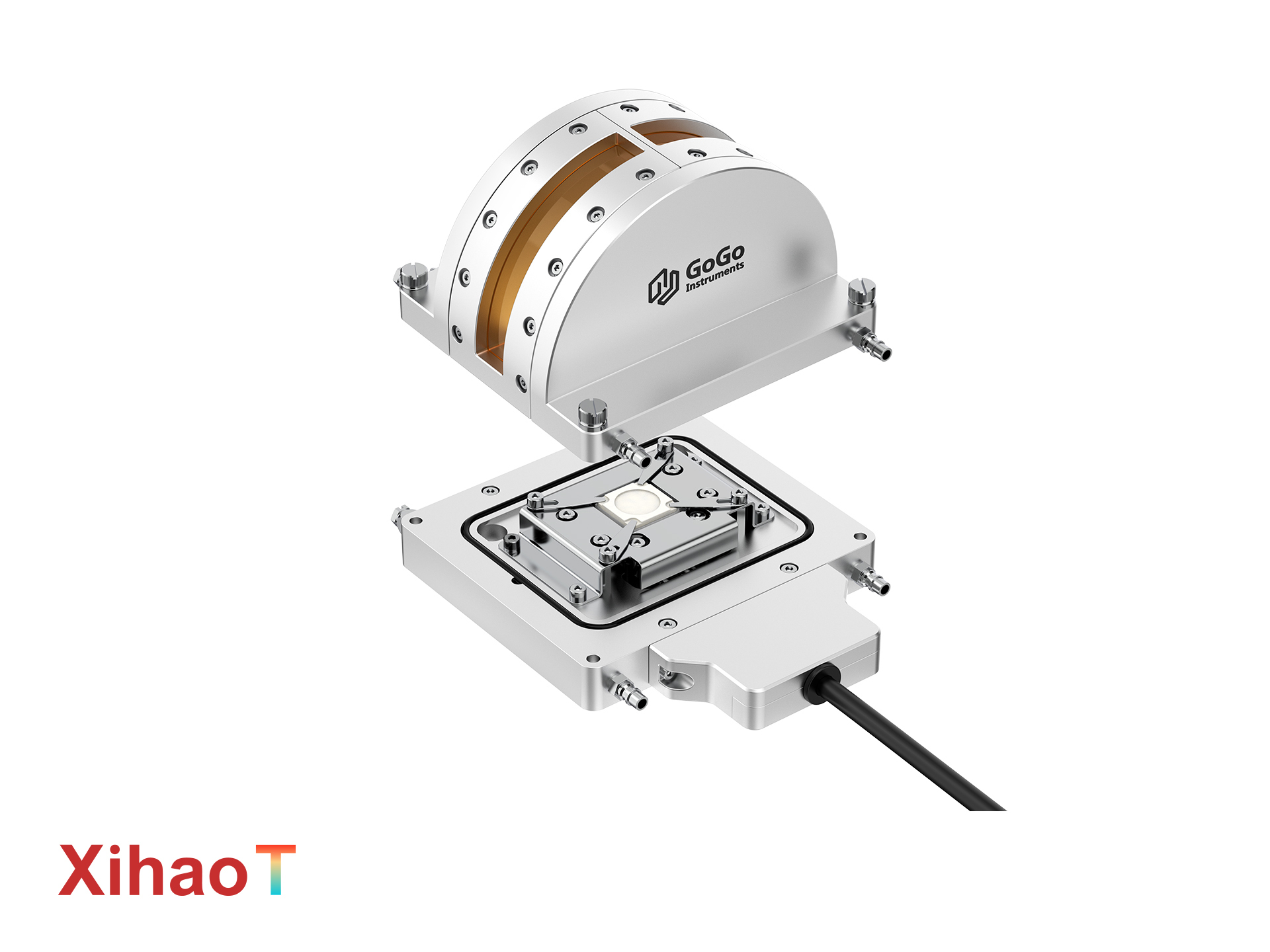

   The system is delivered as a complete thermal analysis kit: the main XRD stage body, a high-precision temperature controller, a recirculating chiller, TNEX software, all necessary cables and tubing, and your customized instrument mounting bracket.
