Universal XRD Sample Stage Precision Heating Cooling Stage For Major XRD Brands

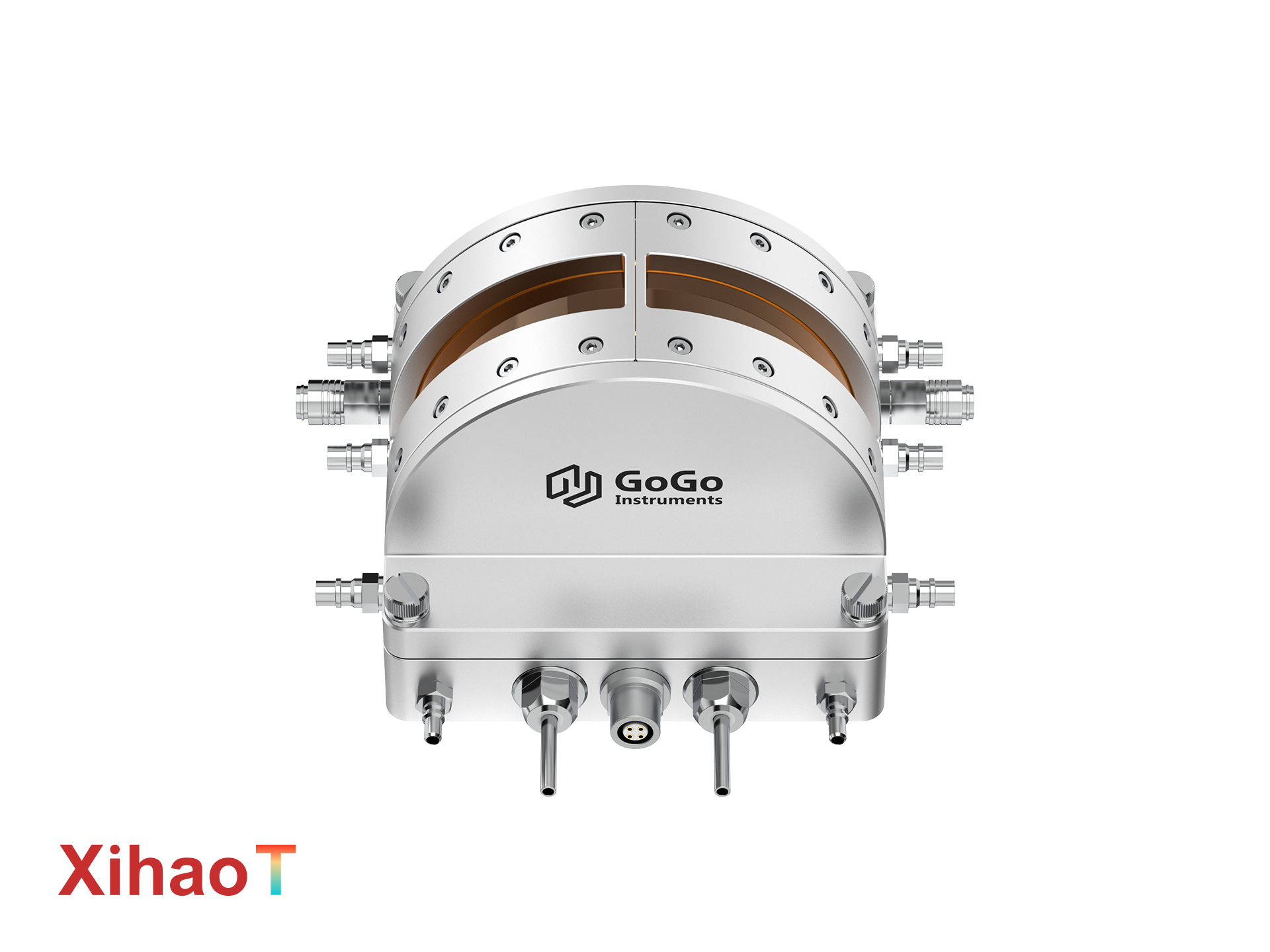

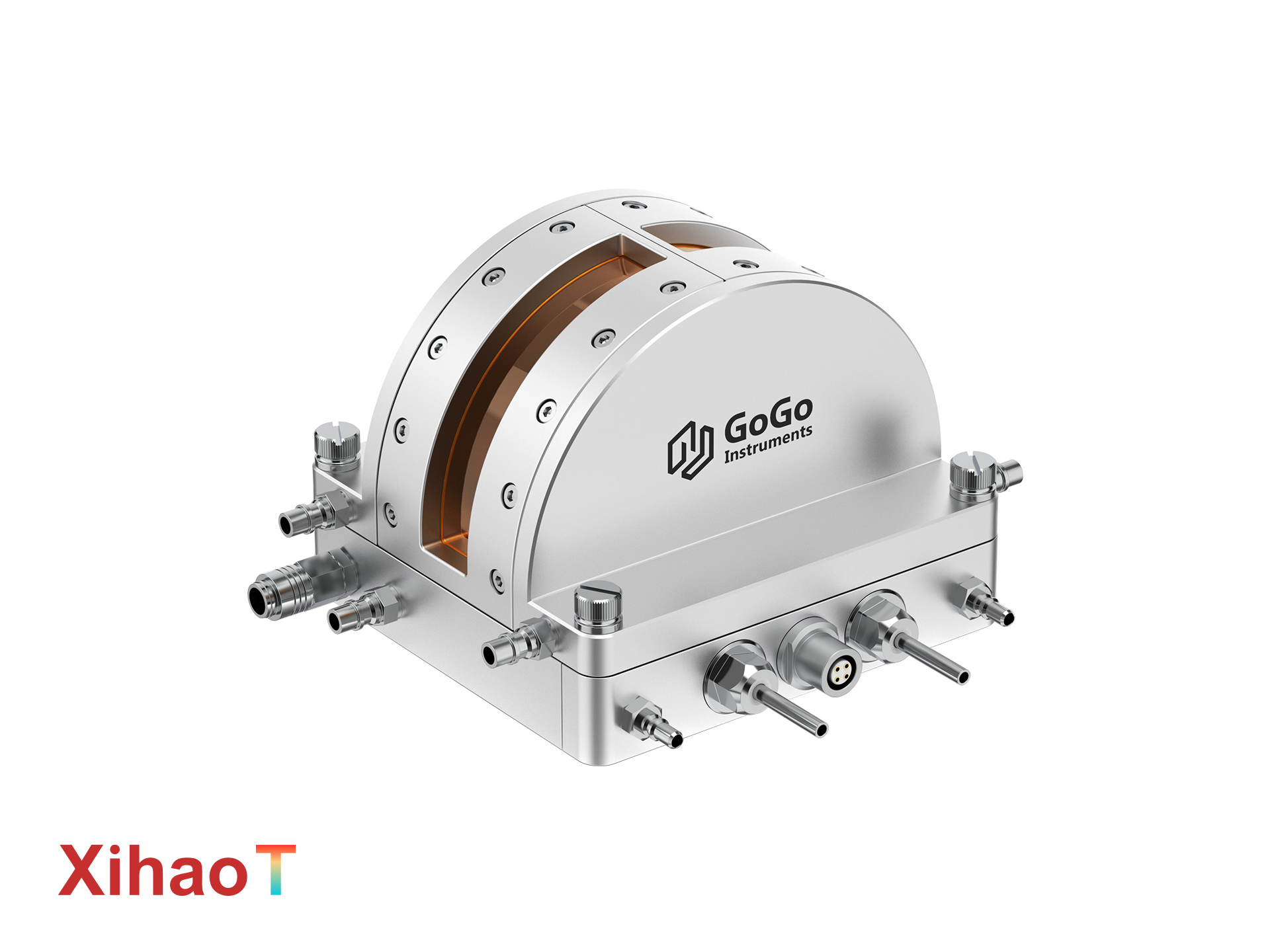

The GoGo XCH600/XCH400V is a precision-engineered XRD Sample Stage specifically designed to enable in-situ temperature-dependent X-ray diffraction studies. This advanced stage provides researchers with a powerful tool to investigate phase transitions, thermal expansion, and structural dynamics of materials from cryogenic -190°C up to 600°C, all with exceptional stability of ±0.1°C. Its standout feature is a unique arc-shaped window design made from Kapton film, which supports an unparalleled 2θ diffraction angle range of 0° to 164°, ensuring comprehensive data collection. With customizable mounting brackets for seamless integration with major X-ray diffractometer brands including Rigaku, Bruker, Thermo Fisher, Shimadzu, and Malvern Panalytical, this versatile XRD Sample Stage is the definitive solution for modern crystallography and materials characterization laboratories.

• Unmatched Angular Access for Complete Data: The innovative arc-shaped Kapton window provides a continuous, wide 2θ range (0°-164°), eliminating blind spots and allowing for the collection of full diffraction patterns without stage reorientation or window obstruction.

• Universal Compatibility & Easy Integration: We provide customizable adapter brackets, ensuring this XRD Sample Stage fits perfectly onto your specific diffractometer model from leading manufacturers. This turnkey compatibility minimizes downtime and simplifies installation.

• Precision Multi-Mode Temperature Control: Go beyond simple setpoints. The integrated TNEX software enables sophisticated setpoint, ramp, and segment programming, allowing for complex thermal protocols that simulate real-world conditions or study kinetic processes during diffraction experiments.

• Robust Performance Across Extreme Temperatures: Leverages efficient liquid nitrogen cooling and fast resistive heating (150°C/min) to achieve rapid, stable thermal cycling. The stage maintains vacuum or controlled atmosphere integrity, which is crucial for studying air-sensitive samples.

• Certified Quality for Reliable Research: Manufactured under ISO 9001:2015, 14001:2015, and 45001:2018 certified processes, this XRD Sample Stage is built for durability and precision, delivering reliable performance for demanding, long-duration experiments.

This specialized XRD Sample Stage is essential for the advanced research ecosystems in key growth regions including Southeast Asia, the Middle East, Russia, and Africa. It serves a distinguished clientele of university chemistry and materials science departments, government research institutes, and industrial R&D centers focused on catalyst development, battery materials, pharmaceuticals, and metallurgy.

1. How do I ensure this XRD Sample Stage is compatible with my diffractometer?
   Our system is designed for universal compatibility. We work with you to provide a customized mounting bracket tailored to your specific diffractometer make and model (e.g., Rigaku SmartLab, Bruker D8), ensuring a perfect fit.

2. Why is Kapton film used for the window?
   Kapton film is chosen for its excellent X-ray transmission properties, high-temperature stability, and flexibility. The arc-shaped design made possible by Kapton is critical for achieving the wide, unobstructed 2θ range necessary for high-quality diffraction patterns.

3. Can I perform controlled atmosphere experiments?

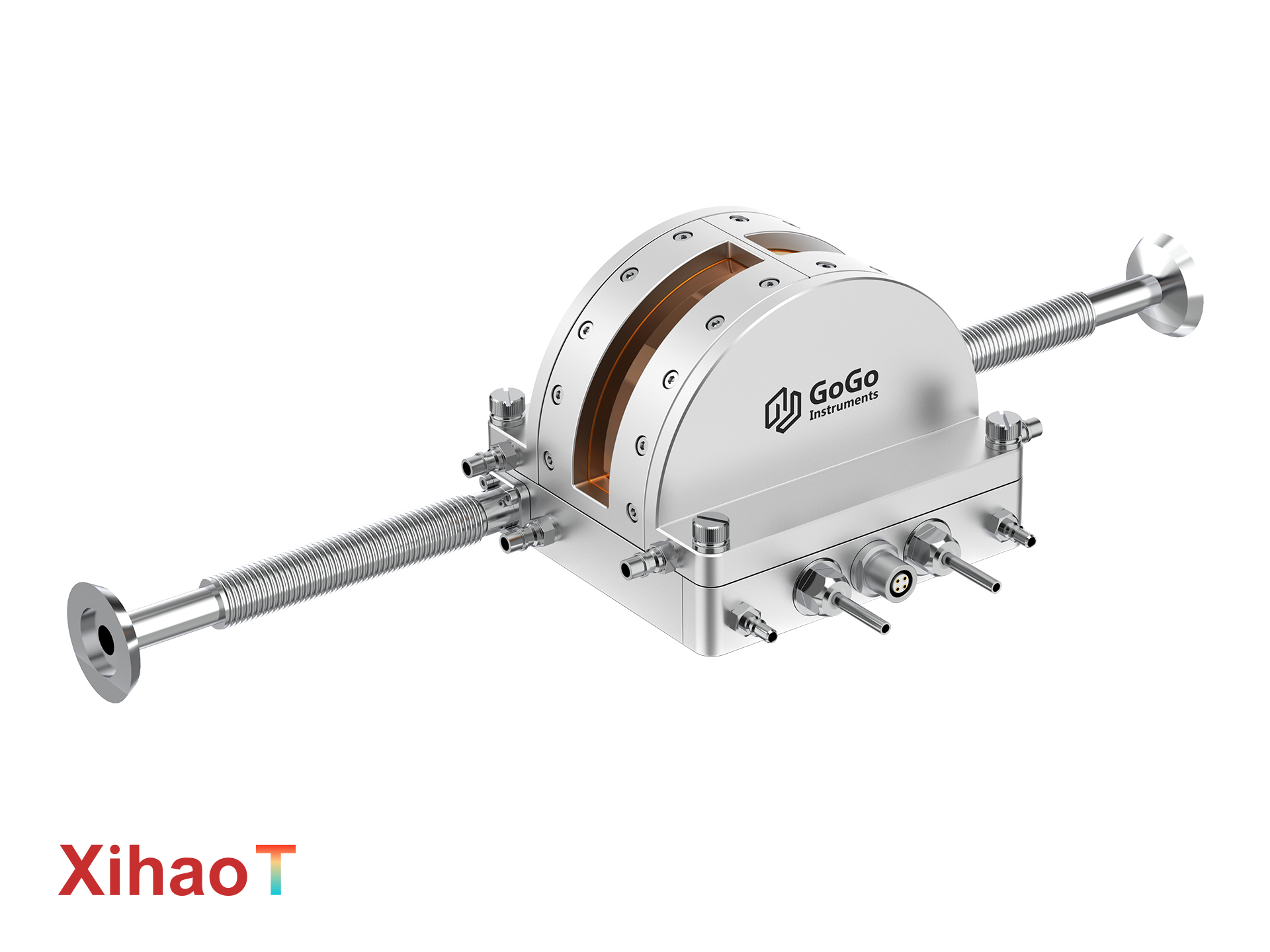

   Yes. The XCH400V model is equipped for vacuum operation, allowing you to study samples in an inert environment or under specific gas flow, which is vital for in-situ reduction, oxidation, or hydration studies.

4. What software controls the temperature, and is it user-friendly?
   The stage is fully controlled by our intuitive TNEX software. It allows you to easily design complex temperature programs (ramps, holds, segments) that run automatically during your XRD data collection.

5. What is included in the delivery package?
   The system is supplied as a complete solution: the XRD stage, dedicated temperature and cooling controllers, a liquid nitrogen tank, a recirculating chiller, TNEX software, and all necessary cables and accessories. Custom adapter brackets for your diffractometer are included as part of the solution.
