OLED In Situ Testing System Liquid Nitrogen Cooling Optical Test System High Precision

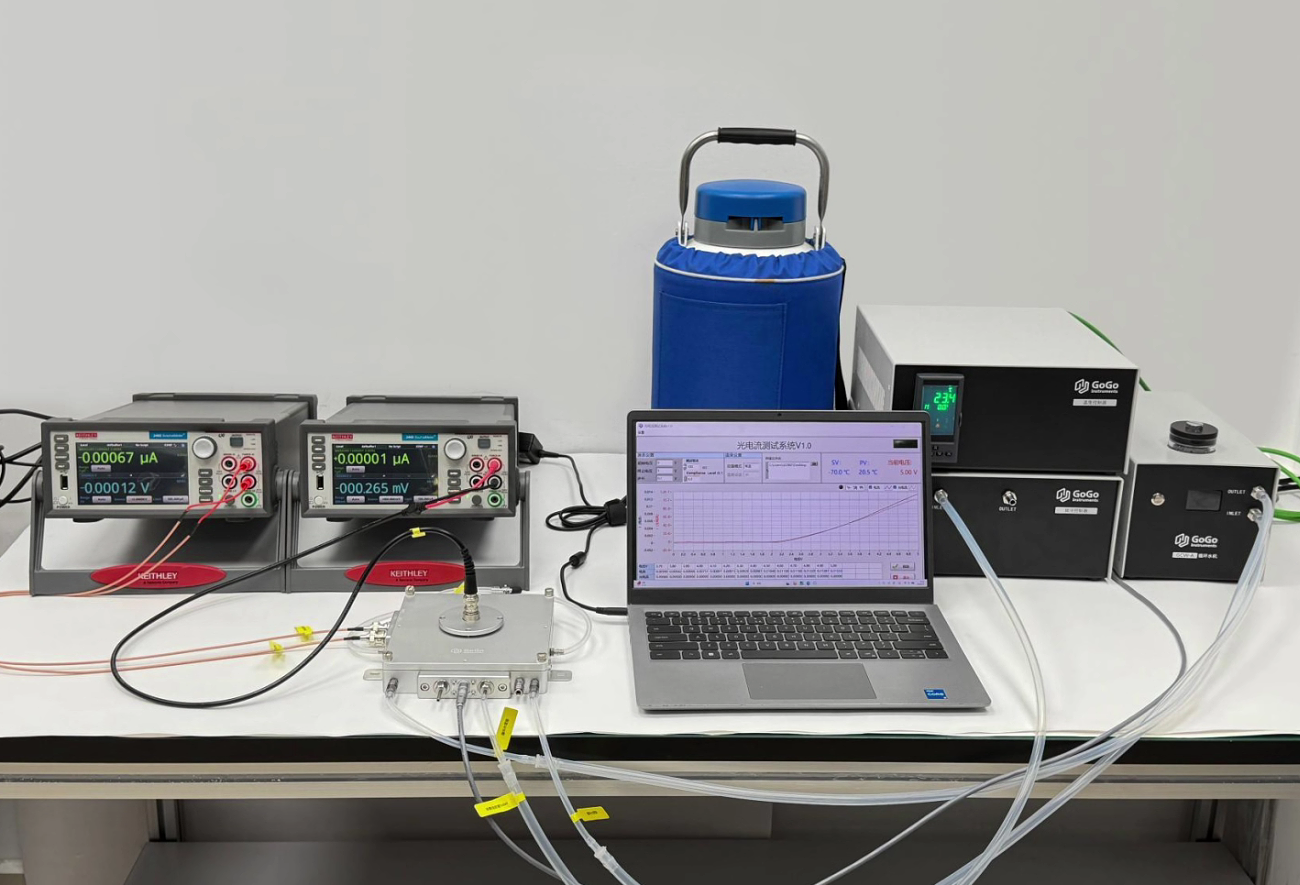

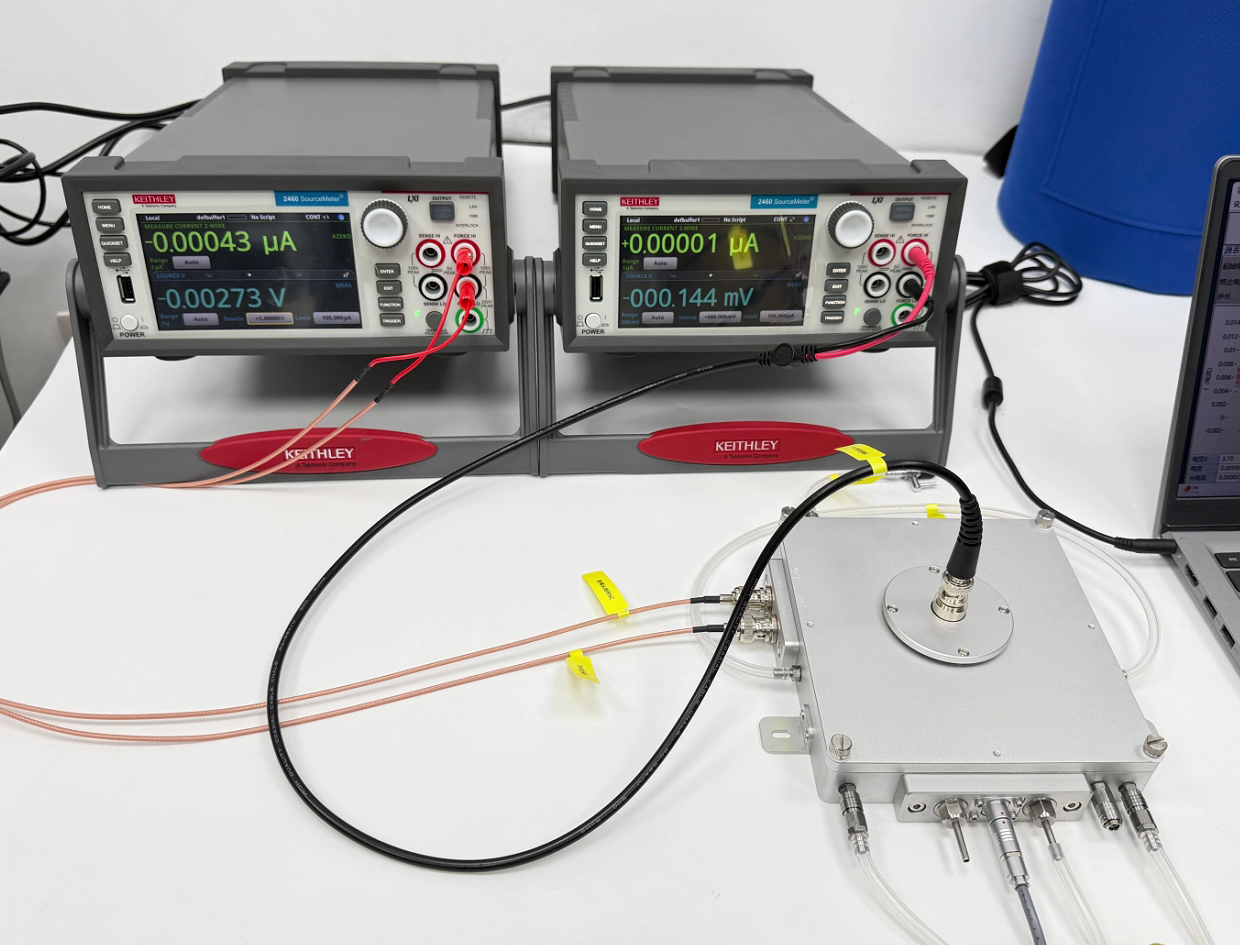

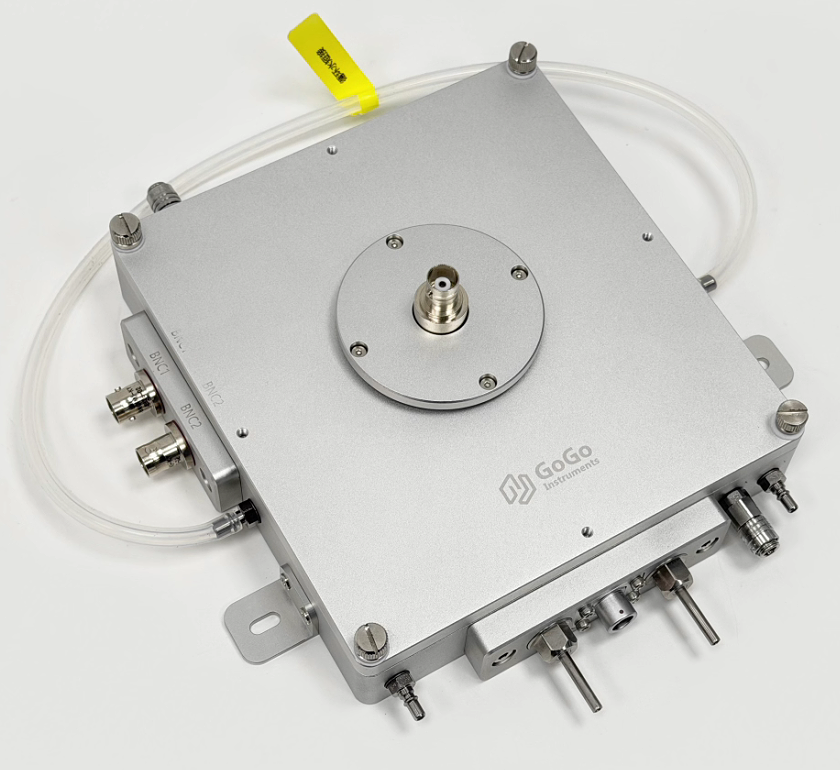

The GoGo OLED-ITS is a specialized In-situ Testing System engineered for comprehensive optoelectronic characterization of OLED devices under precise thermal control. This integrated platform combines a high-precision hot/cold stage with a source meter, silicon photodiode (190-1100 nm), spectrometer (300-1000 nm), and powerful host computer software. Designed to study electroluminescence performance across an exceptional temperature range from -190°C to 600°C with ±0.1°C stability, this In-situ Testing System enables researchers to investigate temperature-dependent efficiency roll-off, color shift, and degradation mechanisms in real-time, providing critical insights for next-generation display and lighting technologies.

• Complete Integrated Solution: This In-situ Testing System eliminates the complexity of assembling disparate components. It provides a turnkey platform combining thermal control, electrical stimulation, and optical detection, allowing researchers to focus on data rather than system integration.

• Extreme Temperature Range with Unmatched Stability: From deep cryogenic -190°C to elevated 600°C, the system maintains exceptional ±0.1°C stability, enabling comprehensive study of OLED behavior across the full spectrum of operating and storage conditions.

• Simultaneous Electrical-Optical Characterization: Measure current-voltage-luminance (I-V-L) characteristics, electroluminescence spectra, and device efficiency in a single automated sequence, all synchronized with precise temperature control for complete device profiling.

• High-Sensitivity Optical Detection: Integrated silicon photodiode (190-1100 nm) and spectrometer (300-1000 nm) provide accurate radiometric and spectral data, essential for understanding emission characteristics and device physics at different temperatures.

• Certified Quality for Demanding Research: Manufactured under ISO 9001, 14001, and 45001 certified processes, this robust In-situ Testing System delivers reliable, reproducible performance for critical academic and industrial R&D applications.

This advanced In-situ Testing System is essential for OLED and optoelectronics research in key growth regions including Southeast Asia, the Middle East, Russia, and Africa. It serves university display research centers, corporate R&D labs in consumer electronics, and national metrology institutes focused on organic semiconductors and solid-state lighting.

1. What measurements can this In-situ Testing System perform?
   The system measures current-voltage characteristics, luminance, electroluminescence spectra, external quantum efficiency (EQE), and color coordinates (CIE) as functions of temperature, providing complete OLED device characterization.

2. Why is temperature-dependent testing important for OLEDs?
   OLED performance, efficiency, and lifetime are highly temperature-sensitive. This In-situ Testing System allows researchers to study thermal effects on charge transport, exciton dynamics, and degradation mechanisms critical for real-world applications.

3. How are optical and electrical measurements synchronized?
   The host computer software coordinates all system components, automatically triggering source meter sweeps and optical detector acquisition at each temperature setpoint for seamless, reproducible data collection.

4. Is the system compatible with encapsulated OLED devices?
   Yes. The chamber accommodates various device geometries, and the atmosphere control allows testing of encapsulated devices under ambient conditions or unpackaged devices in inert environments.

5. What support is available for system operation?
   We provide comprehensive documentation, software training, and responsive technical support to ensure your In-situ Testing System delivers optimal performance from day one.
