In Situ SEM Tensile Stage 5000N High Temperature Stage For Mechanical Testing And EBSD Compatibility

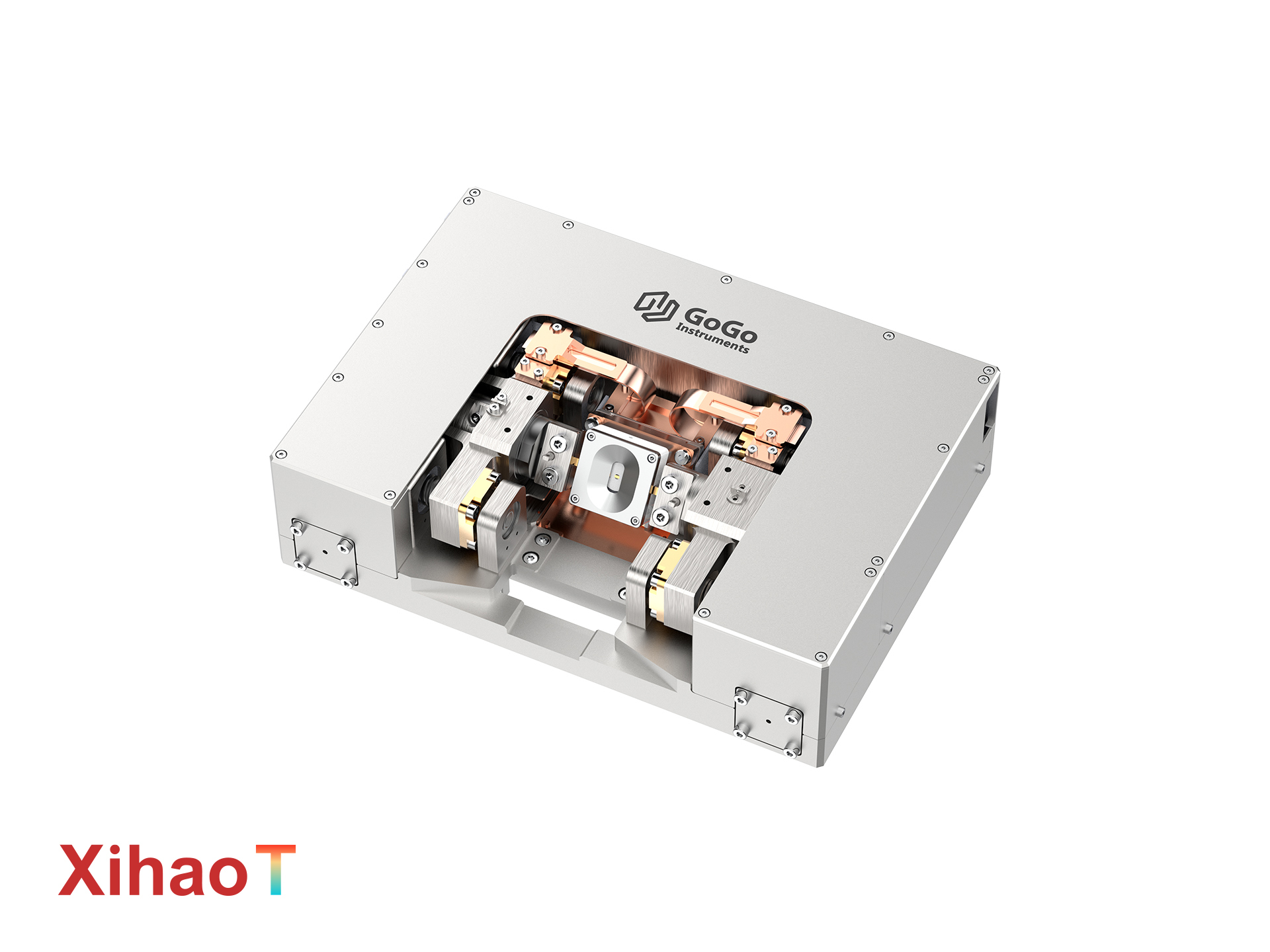

Product Title: GoGo SFH5000-1200 Ultra-High-Temperature In-Situ SEM Tensile Stage with 5000N Load Capacity

Product Introduction

The GoGo SFH5000-1200 is a groundbreaking SEM Tensile Stage engineered for the most demanding in-situ mechanical characterization within a scanning electron microscope. This system uniquely combines ultra-high-temperature heating up to 1200°C with a substantial 5000N tensile load capacity, enabling the direct observation of microstructural evolution under extreme thermo-mechanical stress. Designed as a non-invasive functional accessory, it integrates via external vacuum flanges without modifying your SEM. Fully compatible with EBSD analysis and major SEM brands (ZEISS, Hitachi, Thermo Fisher), this SEM Tensile Stage allows researchers to synchronously study deformation mechanisms, crack propagation, and phase changes in real-time, providing unparalleled insights into material behavior.

Key Advantages & Why Choose Our System

• Unmatched High-Temperature Mechanical Testing: This SEM Tensile Stage delivers exceptional performance, applying precise mechanical loads up to 5000N while maintaining sample temperatures up to 1200°C with ±0.1°C stability, which is critical for testing advanced alloys, ceramics, and coatings.

• True Non-Invasive Integration & EBSD Compatibility: The stage installs via a custom external flange, preserving your SEM's warranty and functionality. Its design ensures full compatibility with Electron Backscatter Diffraction (EBSD) systems, allowing for simultaneous mechanical loading, thermal treatment, and crystallographic orientation analysis.

• Multi-Mode Testing in a Single Platform: Go beyond simple tension. This versatile stage supports tension, compression, shear, and bending tests by interchangeable fixtures, enabling comprehensive mechanical property mapping on a single sample inside the SEM chamber.

• Precision Control & Real-Time Observation: The integrated TNEX software provides complete control over complex temperature ramps (up to 150°C/min) and precise mechanical loading profiles. This enables the capture of highly stable, real-time microdynamic processes as they occur.

• Certified Robustness for Demanding Research: Manufactured under ISO 9001, 14001, and 45001 certified processes, this robust SEM Tensile Stage is built for reliability and precision in the most rigorous laboratory environments.

Technical Specifications

Target Markets & Clients

This advanced SEM Tensile Stage is essential for frontier materials research in key global regions including Southeast Asia, the Middle East, Russia, and Africa. It is an indispensable tool for university research labs, government aerospace and energy institutes, and high-tech industrial R&D centers focused on material reliability and failure analysis.

Frequently Asked Questions (FAQ)

1. Does installing this SEM Tensile Stage void my SEM warranty?
   No. The stage is a non-invasive accessory that connects via an unused chamber port using a custom flange, requiring no internal modifications to the SEM, thus protecting the manufacturer's warranty.

2. How is the stage made compatible with different SEM brands?
   We provide customized flanges and adapter plates engineered to match the specific vacuum port geometry and mechanical interface of your SEM model, ensuring a perfect and secure fit.

3. Why is EBSD compatibility important for a tensile stage?
   EBSD compatibility allows you to correlate mechanical deformation and thermal effects with changes in grain orientation, phase distribution, and local strain at the microstructural level, providing a complete picture of material performance.

4. What is included in the basic system package?
   The package is a complete workstation: the main tensile stage assembly, a high-precision temperature controller, a recirculating chiller, a 5000N force controller, TNEX software, and all necessary cables and accessories. Custom flanges for your SEM are included.

5. Can I use this stage for fatigue or long-term creep studies?
   While optimized for static loading, the precise control and stability of the system make it suitable for slow strain-rate tests and studies of time-dependent deformation mechanisms under constant load at high temperatures.
