Peltier Microscope Hot Stage Efficient Hot And Cold Stage Versatile With Vacuum Sealed Chamber

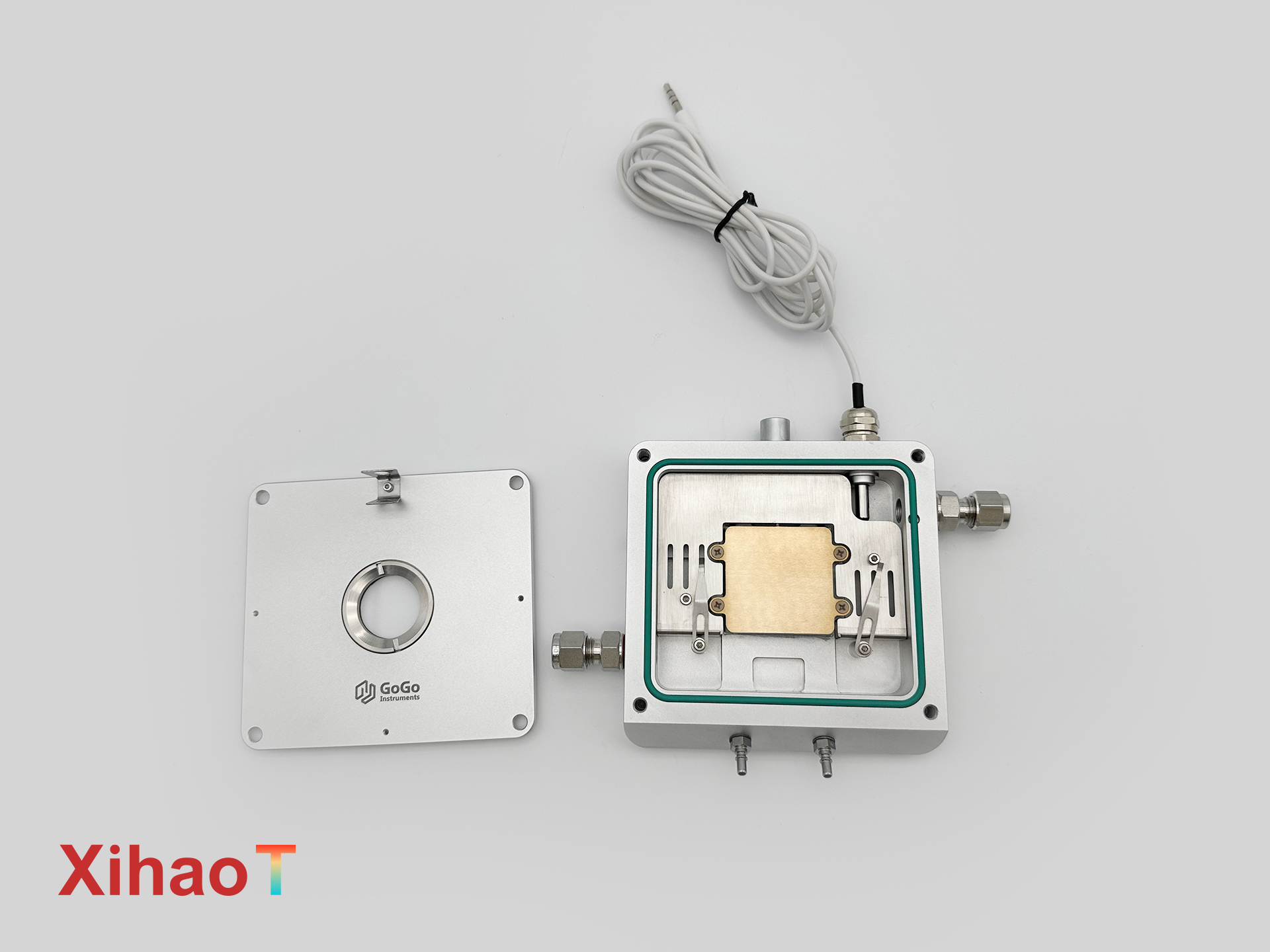

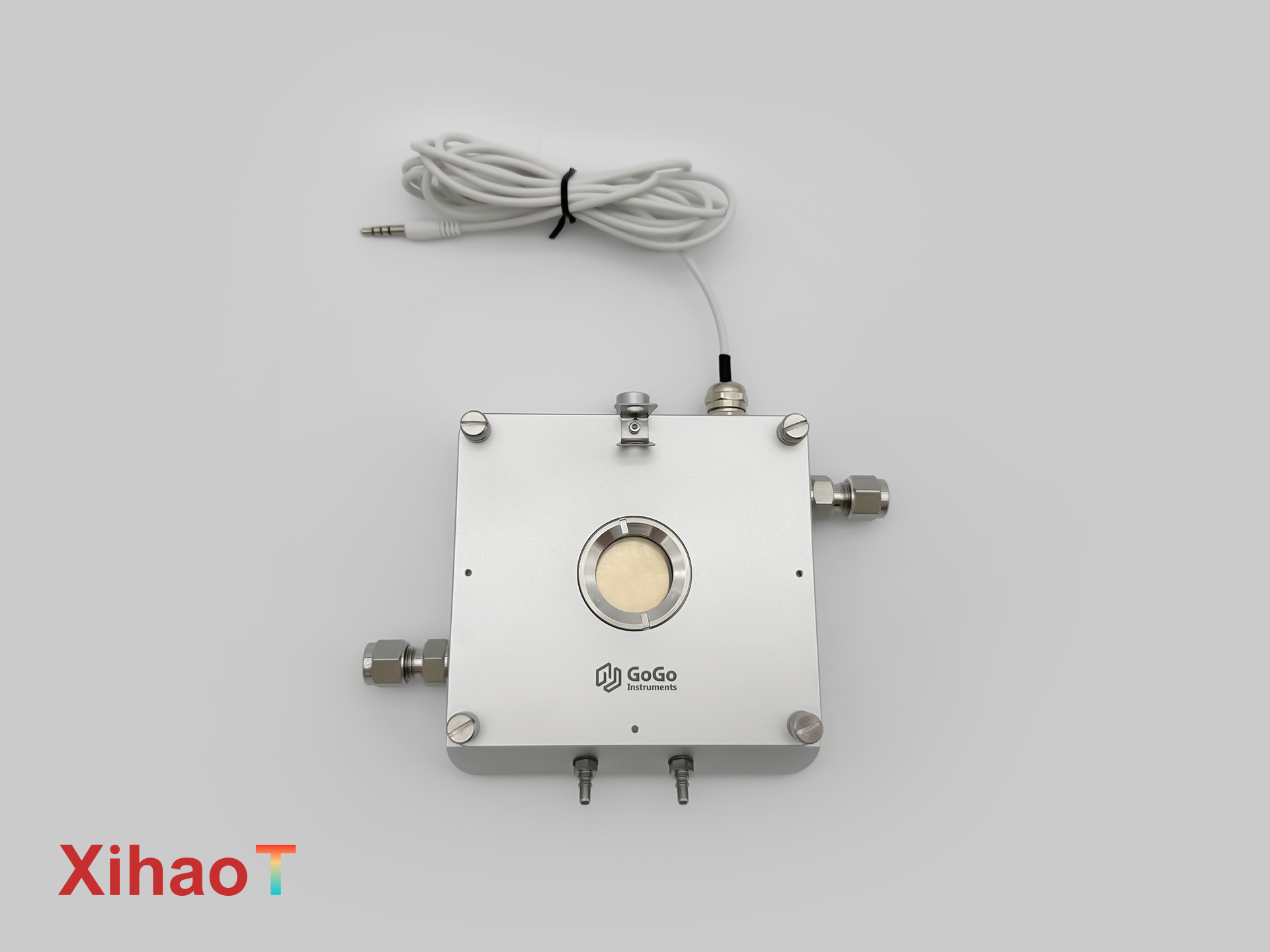

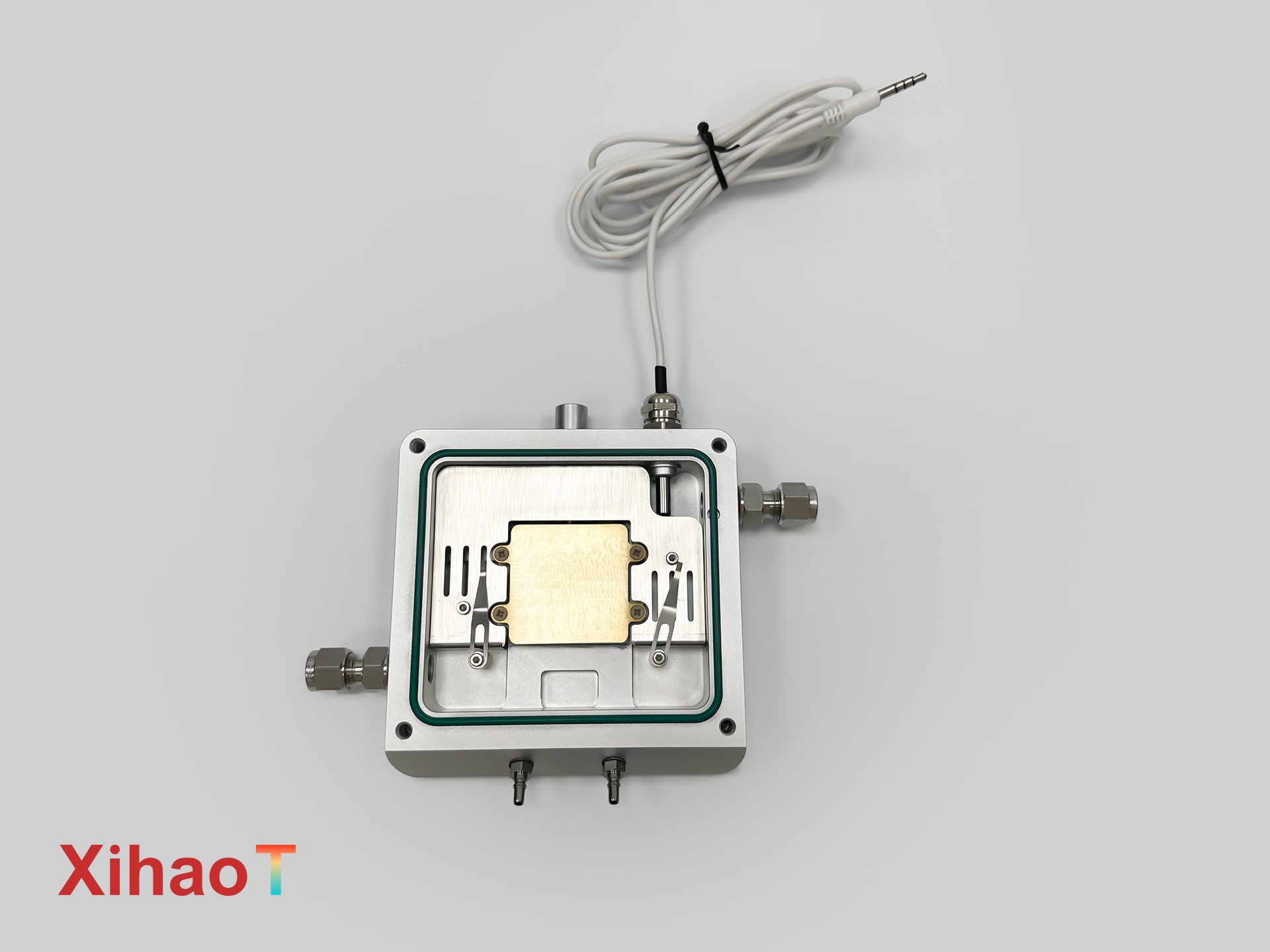

Product Name: GoGo PE120 Humidity-Controlled Peltier Microscope Stage for Dynamic Environmental Research (-30°C to 120°C)

Product Introduction

The GoGo PE120 is a versatile and eco-friendly Peltier Microscope Stage engineered for precise in-situ observation under controlled environmental conditions. Utilizing solid-state Thermoelectric (Peltier) technology, it provides reliable heating and cooling from -30°C to 120°C without liquid nitrogen, while maintaining exceptional stability of ±0.1°C. Its sealed chamber design not only ensures thermal uniformity but also enables active humidity control, allowing researchers to simulate a wide range of atmospheric conditions. This advanced Peltier Microscope Stage is ideal for studying hydrated biological samples, polymer hygroscopicity, corrosion processes, or any application where both temperature and moisture levels must be precisely regulated during microscopy.

Key Advantages & Why Choose Our System

• Integrated Temperature & Humidity Control: This Peltier Microscope Stage uniquely combines precise thermal management with the ability to create and maintain a humid atmosphere within its sealed chamber, offering unmatched environmental simulation for life science and materials research.

• Eco-Friendly, Efficient Peltier Operation: The solid-state TEC system provides quiet, vibration-minimized, and consumable-free cooling and heating at rates up to 30°C/min, significantly reducing operational costs and complexity compared to liquid nitrogen-based systems.

• Superior Stability for Long-Term Observation: Achieves laboratory-grade temperature stability of ±0.1°C, ensuring consistent conditions for time-lapse studies, reproducible experiments, and high-quality data collection over extended periods.

• Excellent Optical Access & User-Friendly Design: The large φ25mm top window made of JGS2 silica provides a clear view from UV to NIR. The compact, sealed design integrates easily with most microscopes, making this Peltier Microscope Stage a practical addition to any lab.

• Complete System with Intelligent Software: Supplied as a ready-to-use kit with a recirculating chiller and controlled by the powerful TNEX software, enabling automated programming of complex temperature (and humidity) profiles for hands-free operation.

Technical Specifications

Target Markets & Clients

This flexible Peltier Microscope Stage is tailored for diverse research needs in key growth regions, including Southeast Asia, the Middle East, Russia, and Africa. It is an essential instrument for university biology and materials science departments, pharmaceutical R&D labs, and industrial research centers focusing on biomaterials, coatings, electronics reliability, and environmental testing.

Frequently Asked Questions (FAQ)

1. What is the main application of humidity control in a Microscope Stage?
   Humidity control is crucial for studying live cells or tissues in physiologically relevant conditions, observing hydration-driven phase changes in materials, testing corrosion, or investigating the water absorption of polymers and composites in real-time.

2. How does the Peltier technology benefit my research compared to liquid nitrogen?
   Peltier technology offers a cleaner, quieter, and more convenient solution. It allows for rapid switching between heating and cooling, requires no consumables, and simplifies setup, making this Peltier Microscope Stage ideal for labs prioritizing ease of use and lower running costs.

3. How is humidity introduced and controlled in the chamber?
   Humidity is controlled by connecting an external humidity generator or saturator to the chamber's gas ports. The sealed design maintains the set humidity level, which can be monitored and regulated in conjunction with the temperature via the system controllers.

4. Is this stage compatible with high-magnification objectives?
   Yes, the low-profile design with a 5.8mm working distance provides ample clearance for most high-magnification objectives, ensuring compatibility with detailed microscopy work.

5. What is included in the basic configuration?
   The system is a complete package, including the Peltier stage, a programmable temperature controller, a recirculating chiller for heat exchange, TNEX software, and all necessary cables and tubing for immediate setup. Humidity control accessories are configured based on user requirements.
