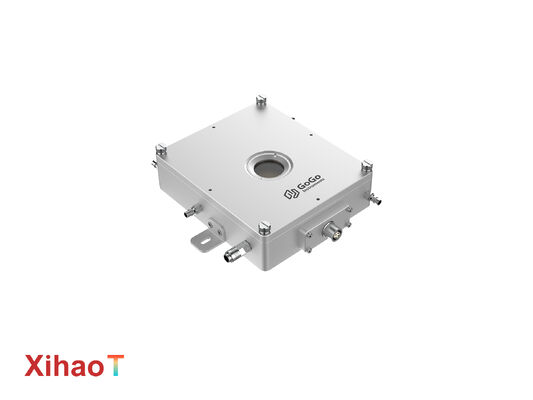

Versatile Peltier Cooling Stage Intelligent Microscope Heated Stage For Precise Thermal Control

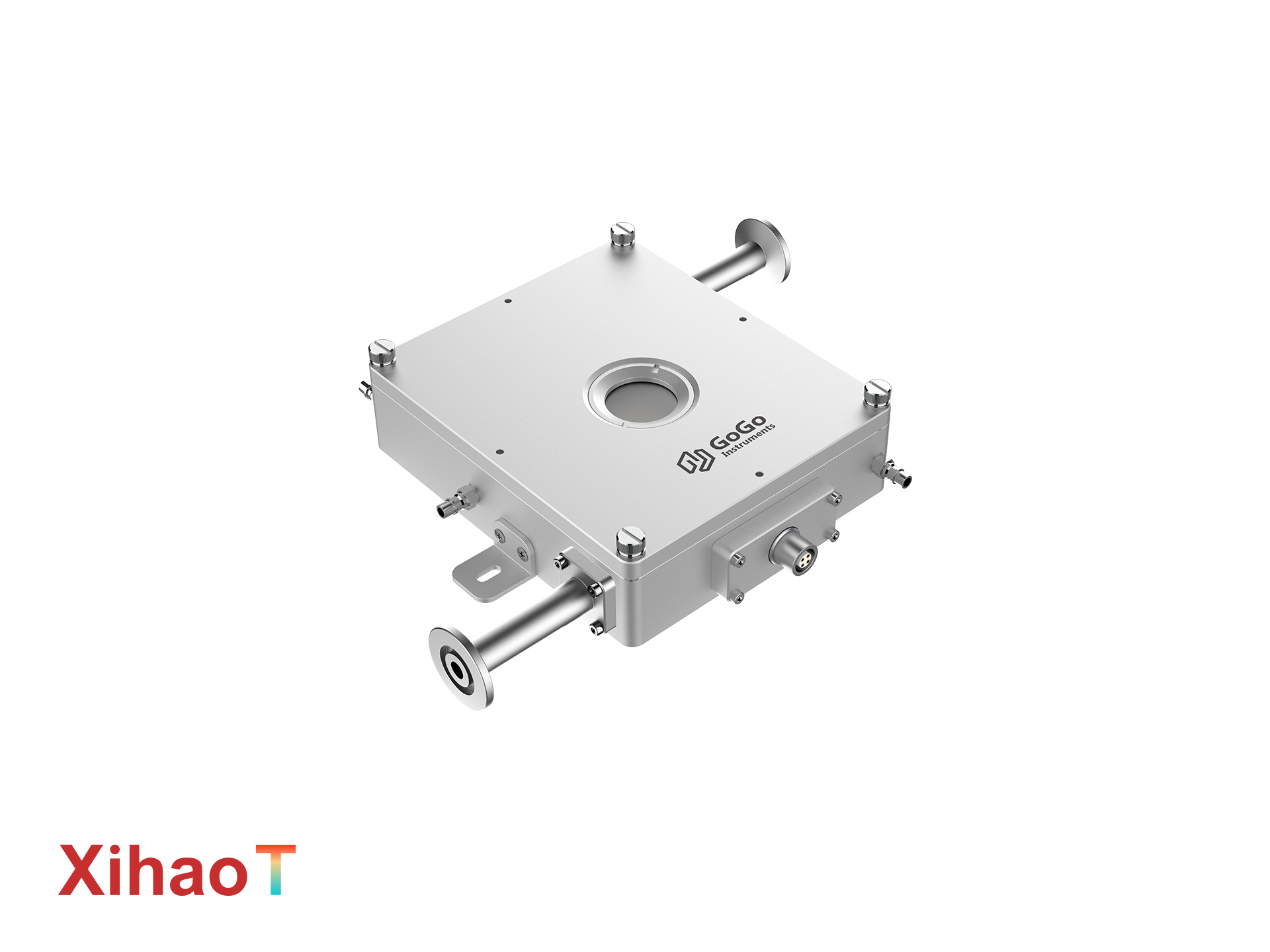

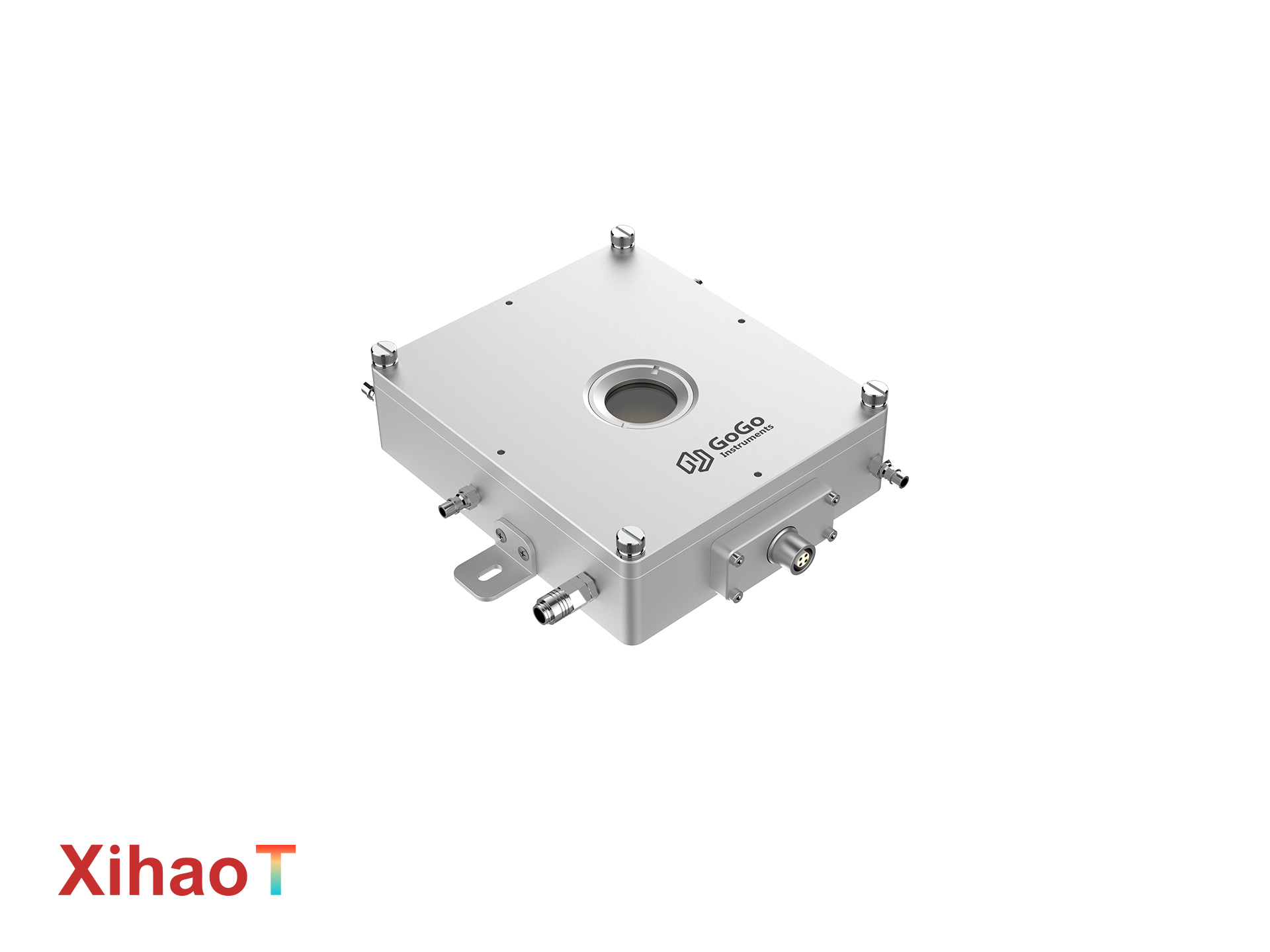

Product Name: GoGo PE120/PE120V Sealed Chamber Peltier Microscope Stage for Vacuum & Controlled Environment Studies

The GoGo PE120/PE120V is a versatile and environmentally responsible Peltier Microscope Stage that delivers precise thermal management from -25°C to 120℃. Utilizing solid-state Peltier (TEC) technology, it provides efficient cooling and heating without liquid nitrogen consumption. Its defining feature is the ability to provide airtight or vacuum testing environments, making it an essential tool for studying oxidation-sensitive materials, hydrated biological samples, or chemical reactions under controlled atmospheres. With dual reflection/transmission optical paths and a compact, sealed chamber, this advanced Peltier Microscope Stage is engineered for high-stability in-situ analysis in materials science, life sciences, and chemistry.

• Controlled Atmosphere for Critical Samples: The PE120V model offers a vacuum-sealed chamber, allowing researchers to create inert, dry, or specific gas environments. This protects sensitive samples from oxidation or hydration, enabling true intrinsic property measurement—a key advantage of this Peltier Microscope Stage.

• Eco-Friendly & High-Performance Thermal Control: The solid-state Peltier system eliminates the cost and hassle of liquid nitrogen, providing quiet, vibration-free operation. It achieves rapid 30°C/min ramping while maintaining excellent ±0.1°C stability for reliable, reproducible results.

• Dual Optical Paths for Comprehensive Analysis: Featuring both reflection and transmission (via a φ2mm hole) observation modes with high-quality JGS2 silica windows, this stage supports a wide range of techniques from standard microscopy to micro-spectroscopy and Raman analysis.

• Complete, Intelligent System Integration: Supplied as a ready-to-use kit with a recirculating chiller and controlled by the powerful TNEX software. This allows for sophisticated temperature programming, experiment automation, and synchronized data acquisition.

• Certified Quality for Global Research: Manufactured under ISO 9001, 14001, and 45001 certified processes, this robust Peltier Microscope Stage is built to meet the rigorous demands of international laboratories.

This adaptable Peltier Microscope Stage is ideally suited for research institutions in key growth regions, including Southeast Asia, the Middle East, Russia, and Africa. It is an invaluable tool for university departments, government research institutes, and innovative companies in fields such as electrochemistry, polymer science, pharmaceuticals, and advanced materials development.

1. What types of experiments require the vacuum/atmosphere control of this stage?
   This capability is crucial for studying air-sensitive materials (e.g., certain polymers, battery materials), preventing ice condensation on cold samples, conducting controlled gas reaction studies, or maintaining hydration levels in biological specimens.

2. How does the Peltier technology in this Microscope Stage compare to liquid nitrogen cooling?
   Peltier cooling is more convenient and cost-effective for the -25°C to 120°C range. It offers faster setup, no consumables, minimal vibration, and precise electronic control, making this Peltier Microscope Stage a user-friendly and sustainable choice.

3. Can I use this for fluorescence or UV-Vis transmission microscopy?
   Yes. The high-quality JGS2 fused silica windows provide excellent transmission from 220 nm to 2500 nm, making the stage compatible with UV, visible, and NIR light for a broad range of optical and spectroscopic techniques.

4. What is the difference between the PE120 and PE120V models?
   The PE120 has a sealed chamber for static or purged atmosphere control. The PE120V includes vacuum fittings, allowing you to evacuate the chamber and backfill with a specific gas, providing a higher level of environmental control.

5. What is included in the standard configuration?
   The system is a complete solution, including the Peltier stage, a programmable temperature controller, a recirculating chiller, TNEX software, and all necessary cables and tubing. A vacuum pump for the PE120V model is an optional accessory.
