Electrical Temperature Control Stage Precise Control Microscope Heated Stage For Microscope Observation

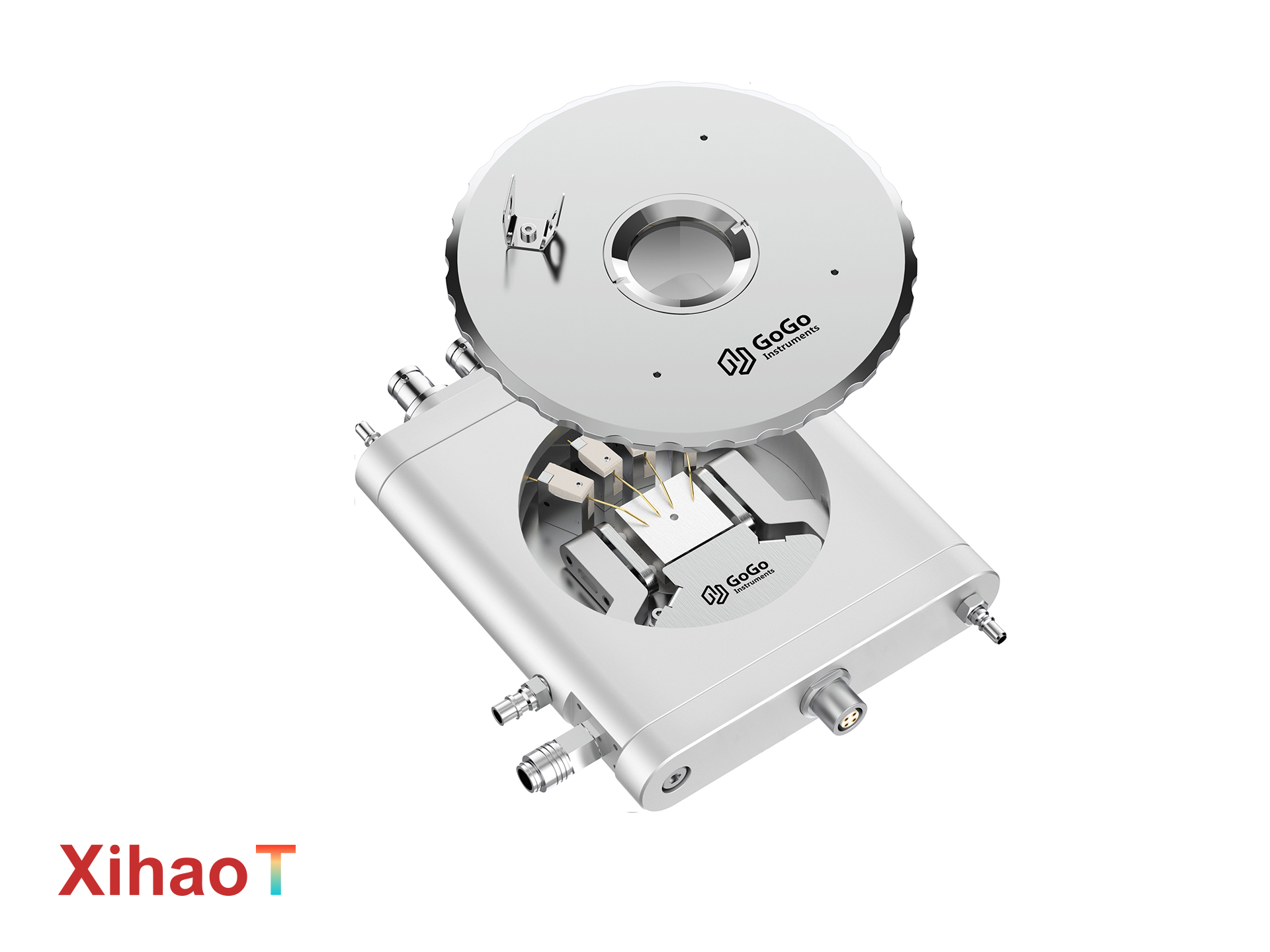

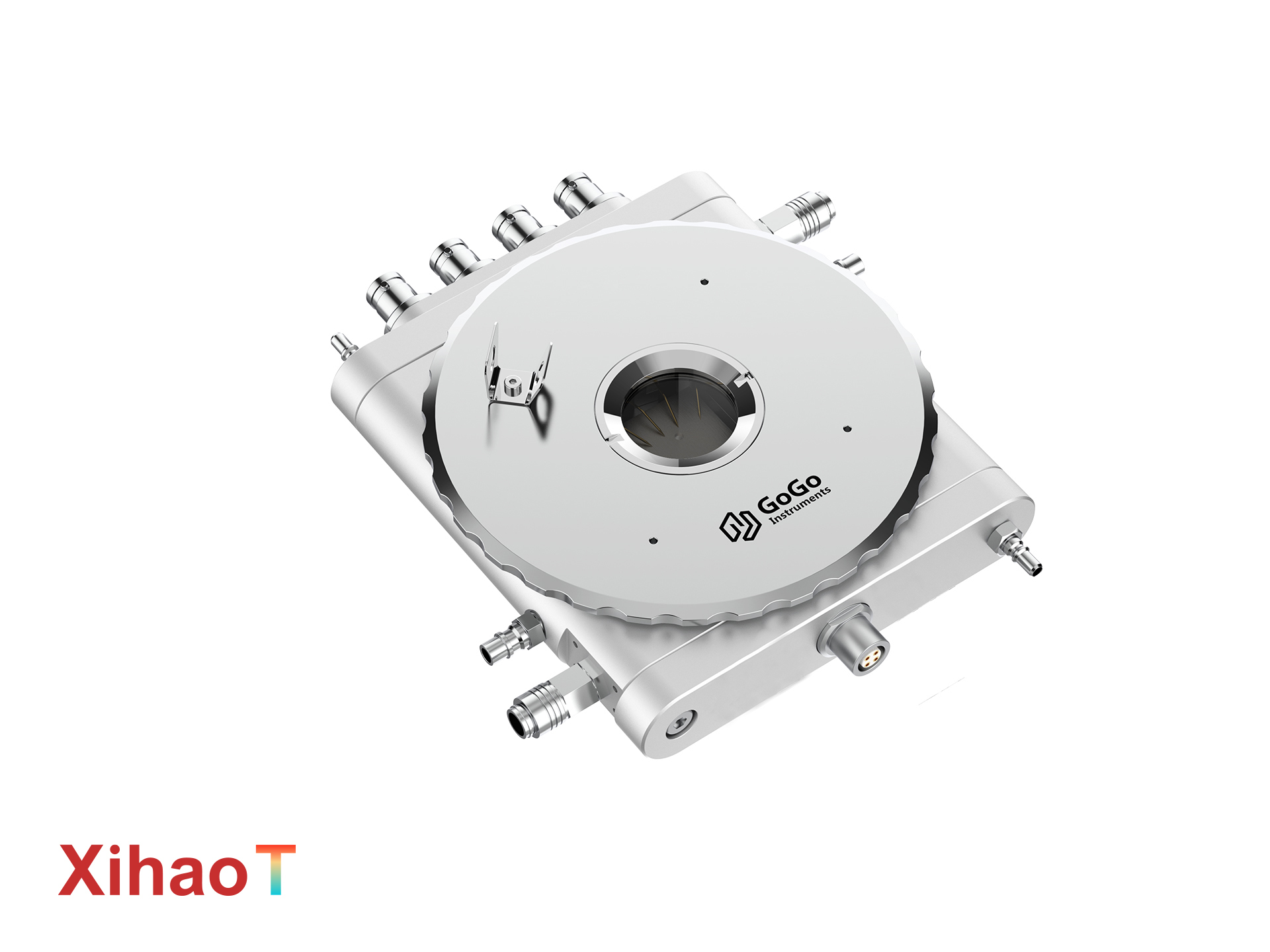

The GoGo EH600S is a specialized High-Temperature Probe Stage engineered to characterize the temperature-dependent evolution of electrical properties in advanced materials. Designed for operation from room temperature to 600°C, it integrates a robust heating system with a precise four-probe measurement setup, making it ideal for in-situ electrical testing of semiconductors, thin films, and electronic ceramics. This dedicated Probe Stage enables researchers to correlate real-time electrical data with direct optical observation through its high-transmission viewing window, providing a comprehensive analysis platform controlled by the advanced TNEX software.

• Focused High-Temperature Electrical Analysis: This Probe Stage is optimized for the critical RT to 600°C range where many electronic materials undergo significant property changes, offering precise stability (±0.1°C) for reliable resistivity, IV, and C-V measurements.

• High-Speed Thermal Ramping: Achieve rapid heating up to 150°C/min for efficient thermal cycling experiments. Integrated active cooling ensures controllable temperature descent, protecting both the sample and the stage.

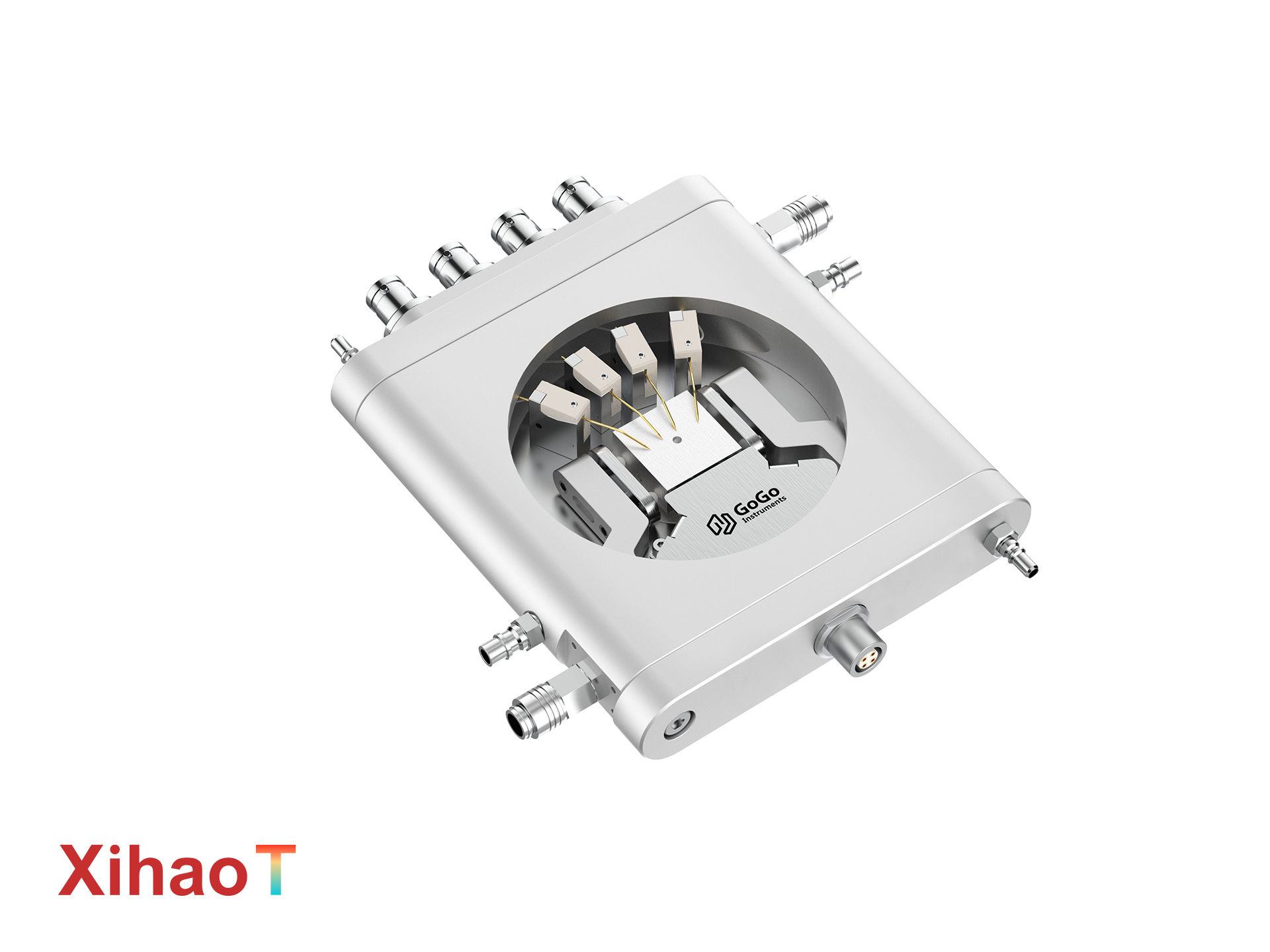

• Precision Probe Positioning System: Four magnetic holders with gold-plated tungsten steel probes allow for manual, fine-resolution positioning to establish accurate and stable electrical contacts on the sample surface.

• Unified Software for Streamlined Workflows: The TNEX software platform provides centralized control, allowing seamless synchronization of complex temperature profiles with electrical measurement sequences from external analyzers, thereby automating data collection.

• Certified Quality with Application Focus: Manufactured under ISO 9001, 14001, and 45001 standards, this Probe Stage is a turnkey solution for laboratories focused on electronics R&D, supported by options for probe and system customization.

This professional Probe Stage is effectively deployed in dynamic research markets, including Southeast Asia, the Middle East, Russia, and Africa. It serves a vital role for university departments, government research institutes, and technology companies specializing in semiconductor development, novel electronic materials, and device physics.

1. What is the primary application of the EH600S Probe Stage?
   It is designed to study how electrical conductivity, carrier mobility, and other key parameters of electronic materials change with temperature, from ambient up to 600°C.

2. Why does this Probe Stage not include cryogenic cooling?
   The EH600S is specialized for high-temperature applications. For studies requiring sub-ambient temperatures, our ECH-series stages with liquid nitrogen cooling are available.

3. How flexible is the probe system for different sample types?
   The standard tungsten probes are suitable for most materials. The magnetic holders allow for easy replacement, and the stage supports customized probe options (e.g., different tip materials or geometries) upon request.

4. How does the software integrate with my measurement equipment?
   The TNEX software controls the temperature. You connect your source meter or parameter analyzer to the stage's BNC ports. By syncing your instrument's measurement routine with the TNEX temperature profile, you can automate the entire characterization process.

5. Is the stage ready to use upon delivery?
   Yes. The basic configuration is a complete system, including the probe stage, a high-precision temperature controller, a recirculating chiller, TNEX software, and all necessary cables and tubing for immediate setup in your laboratory.
