Eco Friendly Probing Station Electrical Characterization Station With Peltier Temperature Control

Precision Probe Station with Peltier Temperature Control, XYZ Movement, and Low-Noise Triaxial BNC for Accurate Electrical Characterization

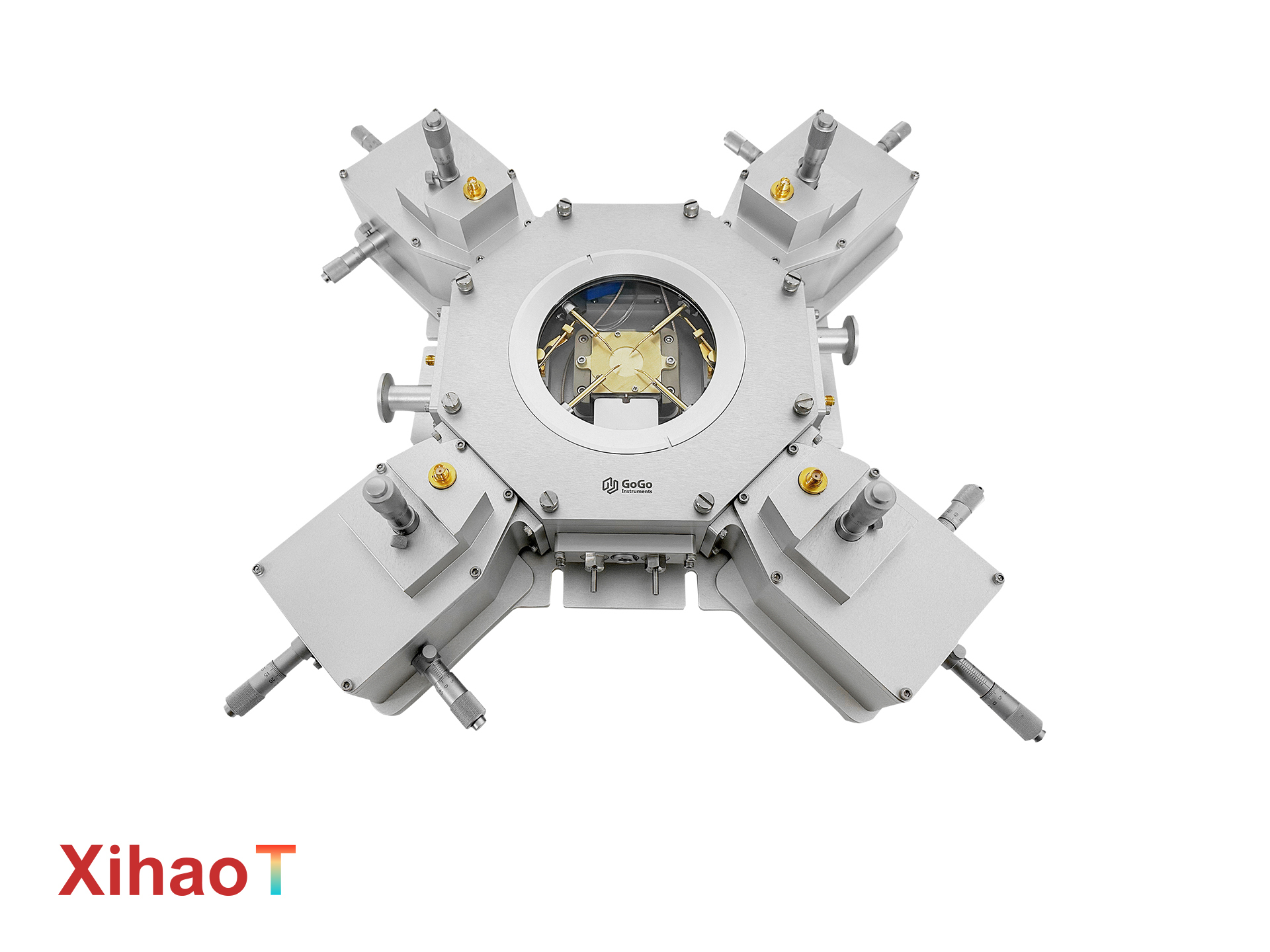

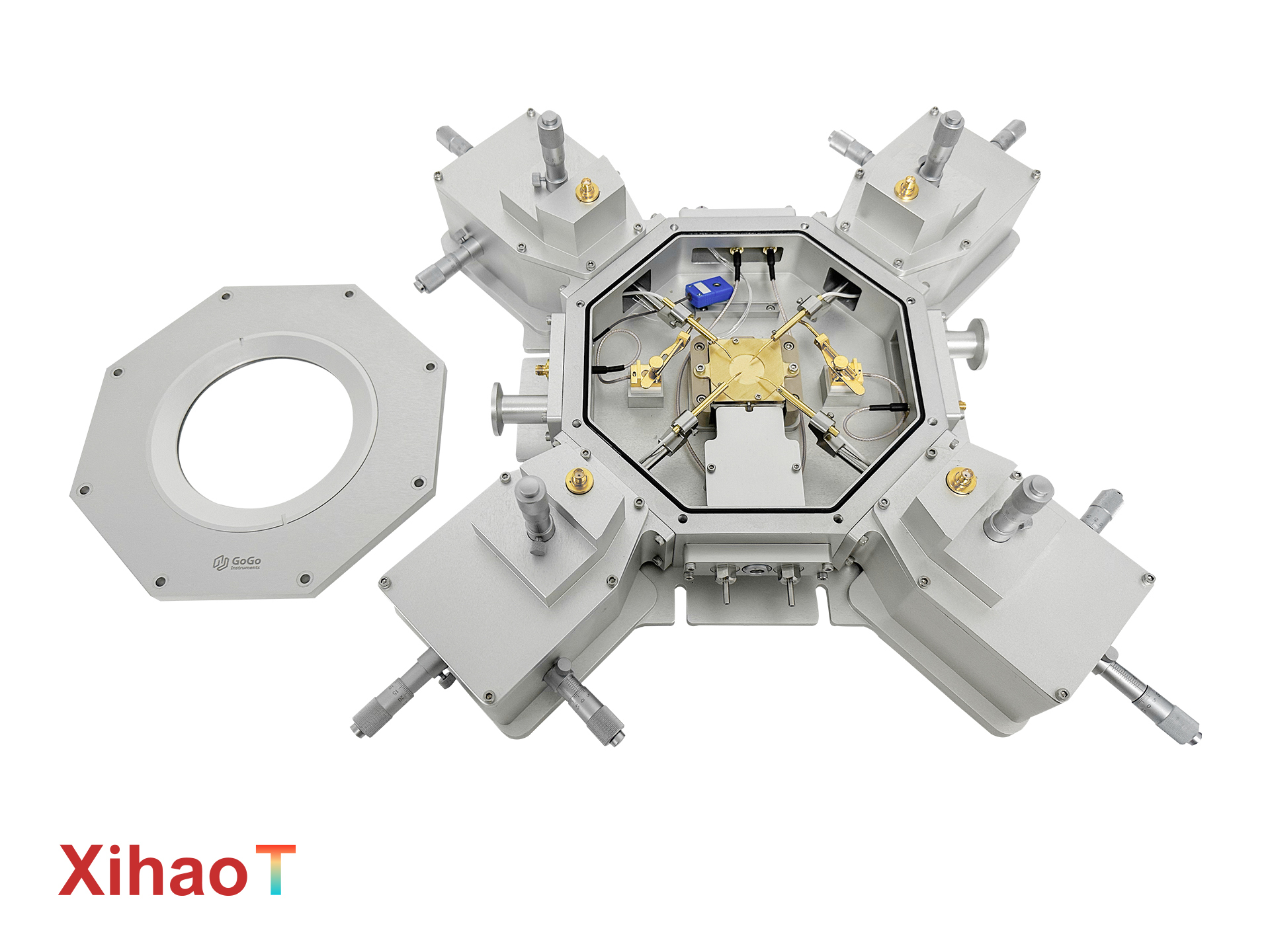

The GoGo EPE120V-EM is an advanced Precision Probe Station designed for clean, quiet, and highly stable electrical characterization of semiconductor devices and sensitive materials. Utilizing efficient Peltier (TEC) technology, it delivers precise temperature control from -25°C to 120°C without the complexity or ongoing cost of liquid nitrogen. This system integrates a manual micrometer-driven XYZ movement stage for sub-micron probe positioning, four low-noise triaxial BNC connections for signal integrity, and a vacuum-compatible chamber—all within a platform featuring an exceptionally large, clear top window for optimal sample viewing. Controlled by the intuitive TNEX software, this Probe Station is the ideal choice for labs prioritizing convenience, precision, and operational simplicity in their device testing workflow.

• Eco-Friendly & Convenient Peltier Operation: This Probe Station eliminates the need for liquid nitrogen, offering a dry, vibration-free, and cost-effective cooling solution. It simplifies lab logistics and reduces long-term operational expenses, making advanced electrical testing more accessible.

• Superior Stability for Sensitive Measurements: Achieves excellent temperature stability of ±0.1°C across its entire range. Combined with its rigid construction and manual micrometer adjustments, the station provides a rock-solid platform for low-current and low-noise electrical measurements, ensuring data accuracy and repeatability.

• Exceptional Optical Access & Tactile Control: The large φ100mm top window provides an unmatched field of view for easy probe alignment and sample inspection. The manual XYZ micromanipulators offer direct, drift-free tactile feedback for establishing perfect electrical contacts on delicate or micron-scale features.

• Integrated Low-Noise Measurement Path: Equipped with gold-plated tungsten carbide coaxial probes and triaxial BNC ports, the station is engineered to shield against electromagnetic interference, which is critical for accurate characterization of photonic devices, sensors, and high-impedance circuits.

• Certified Quality & Complete Digital Integration: Manufactured under ISO 9001:2015, 14001:2015, and 45001:2018 certified processes. The included TNEX software centralizes control, enabling the automation of temperature profiles and synchronization with external analytical instruments for streamlined testing.

This versatile and user-friendly Probe Station is perfectly suited for the evolving research and industrial landscapes in Southeast Asia, the Middle East, Russia, and Africa. It is an essential tool for university laboratories, corporate R&D departments, and specialized research institutes working on semiconductor devices, integrated circuits, MEMS, and novel electronic materials.

1. What are the main benefits of a Peltier-based Probe Station?
   A Peltier-based system like the EPE120V-EM offers a compact, quiet, and maintenance-friendly alternative to liquid nitrogen. It provides rapid turn-on capability, eliminates coolant handling, and delivers stable temperature control ideal for most semiconductor reliability and characterization tests.

2. What types of devices is this station best used for?
   This Precision Probe Station is excellent for testing a wide array of devices, including silicon and compound semiconductor chips, photodiodes, laser diodes, MEMS sensors, and material samples that require electrical characterization within the -25°C to 120°C range.

3. Why is the large 100mm viewing window important?
   The oversized window significantly improves the ease of use. It allows for better lighting, easier navigation of probes across the entire sample area, and compatibility with larger microscope objectives, streamlining the setup and alignment process.

4. Can I connect my existing parameter analyzer to this Probe Station?
   Yes. The triaxial BNC ports are standard interfaces compatible with all major brands of semiconductor parameter analyzers, source measure units (SMUs), and precision LCR meters, allowing for seamless integration into your existing lab setup.

5. What is included in the basic package for immediate operation?
   The system is delivered as a complete, ready-to-use solution. The package includes the main probe station with micromanipulators, a TEC temperature controller, a recirculating chiller, TNEX software, and all necessary cables, tubing, and accessories.
