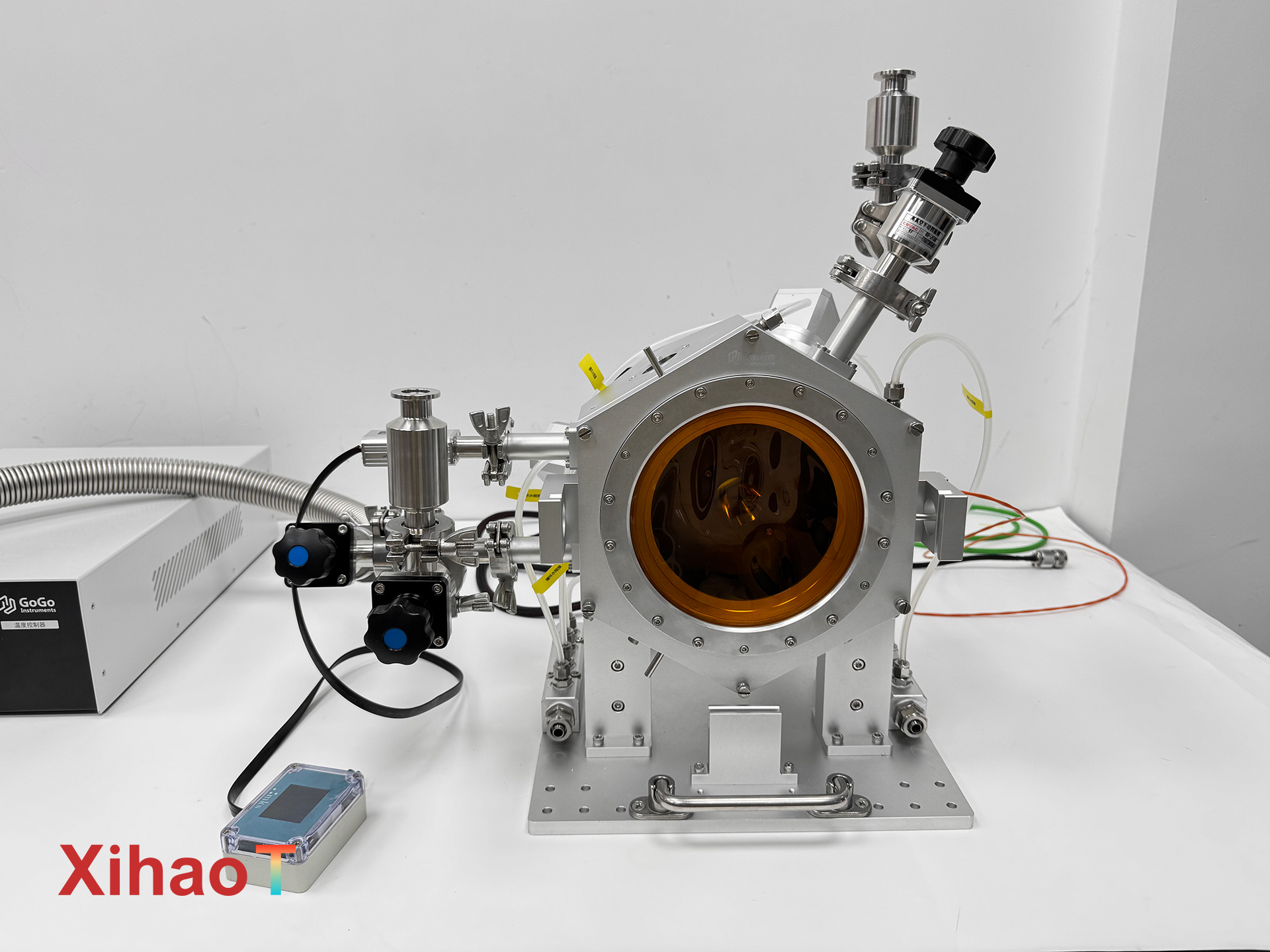

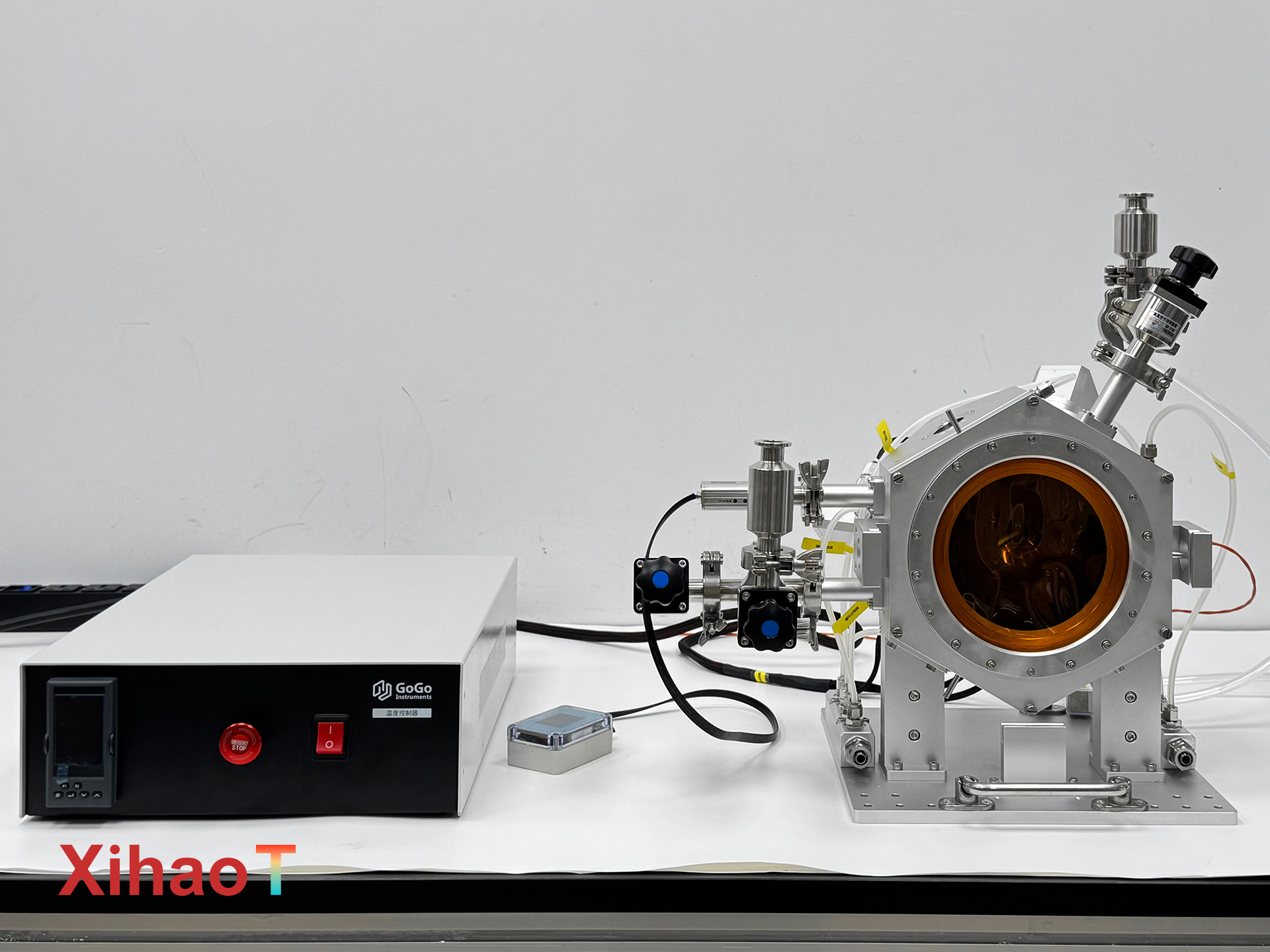

Modular High Temperature Monitoring Equipment Infrared Heating Sample Monitoring System

The GoGo IH1600-SR represents a pinnacle in High Temperature Observation Equipment, specifically engineered for cutting-edge in-situ material analysis, particularly within synchrotron radiation facilities. This system enables researchers to perform synchronous radiation scanning (X-ray diffraction, scattering) on samples undergoing extreme thermal transitions, such as melting, solidification, and phase transformations, with temperatures soaring up to 1600°C. Its defining feature is an innovative infrared focusing heating system capable of ultra-fast heating rates up to 30°C per second, allowing for the study of rapid kinetic processes. Designed with a large, optimized beam path and versatile sample accommodation, the IH1600-SR is the ideal High Temperature Observation Equipment for unlocking real-time structural dynamics at synchrotron beamlines.

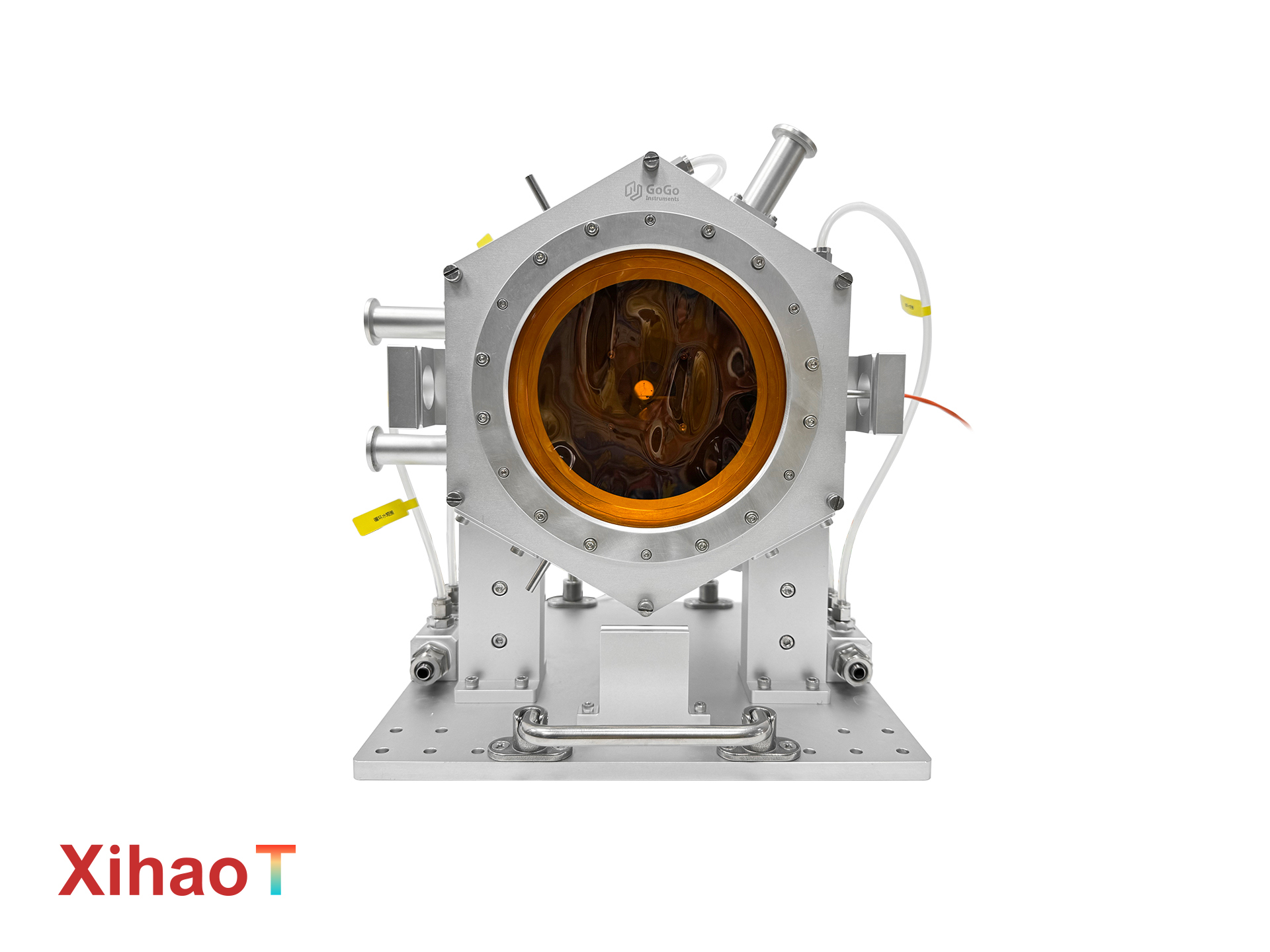

• Synchrotron Beamline Optimized Design: This High Temperature Observation Equipment features a large φ130mm exit window and Kapton film entrance/diffraction windows, maximizing X-ray transmission and providing a wide angular access crucial for diffraction and scattering experiments at synchrotron facilities.

• Ultra-Fast Thermal Response for Kinetic Studies: Achieves unparalleled heating speeds of 30°C/s, allowing researchers to rapidly reach target temperatures and capture transient states or fast reaction pathways that are invisible to slower conventional furnaces.

• Modular Architecture for Maximum Uptime: The core heating assembly utilizes a quick-disconnect modular design. This enables rapid replacement and maintenance directly at the beamline, significantly reducing costly downtime during critical experimental sessions.

• Versatile Sample Compatibility & Precise Control: Accommodates diverse sample geometries (sheet, bulk, cylindrical) on a platinum holder. The system maintains stable temperatures up to 1600°C (±0.5°C) and supports both atmospheric and vacuum environments for studying a broad range of materials.

• Certified for Reliable Facility Operation: Manufactured under ISO 9001, 14001, and 45001 certified processes, this robust High Temperature Observation Equipment is built for the demanding, 24/7 operational environment of shared user facilities, ensuring safety and reliability.

This specialized High Temperature Observation Equipment is critical for international research collaboration in regions such as Southeast Asia, the Middle East, Russia, and Africa. It is an essential investment for national synchrotron light sources, university research groups with beamline access, and industrial R&D teams in advanced materials, metallurgy, and chemistry.

• Why is this system specifically "for synchrotron radiation testing"?
  Its design prioritizes X-ray transparency with large Kapton windows, a compact footprint to fit beamline hutches, and fast thermal response to match limited beamtime schedules, making it an ideal High Temperature Observation Equipment for dynamic in-situ synchrotron experiments.
• What are the benefits of the modular heating assembly?
  In a busy synchrotron facility, time is critical. The modular design allows a technician or user to quickly replace the heating core in minutes if needed, minimizing interruption to the precious and scheduled beamtime for multiple user groups.
• Can it be used for studies other than melting/solidification?
  Absolutely. This system is perfect for in-situ sintering studies, phase diagram determination, chemical reaction monitoring, and stress evolution studies under thermal cycling, all while collecting real-time X-ray data.
• How is the temperature controlled and monitored during an experiment?
  The system is fully integrated with TNEX software, allowing for precise programming of complex temperature profiles. Temperature is monitored and logged in real-time, providing synchronized metadata for your X-ray data analysis.
• What support is available for integration at our facility?
  We provide comprehensive technical specifications for beamline scientists and can work collaboratively on mechanical interfacing. Our support includes detailed documentation and remote assistance to ensure successful integration and operation of this High Temperature Observation Equipment at your beamline.
