Horizontal Tensile Stage Intelligent Control Tensile Modules Compact For In Situ Material Testing

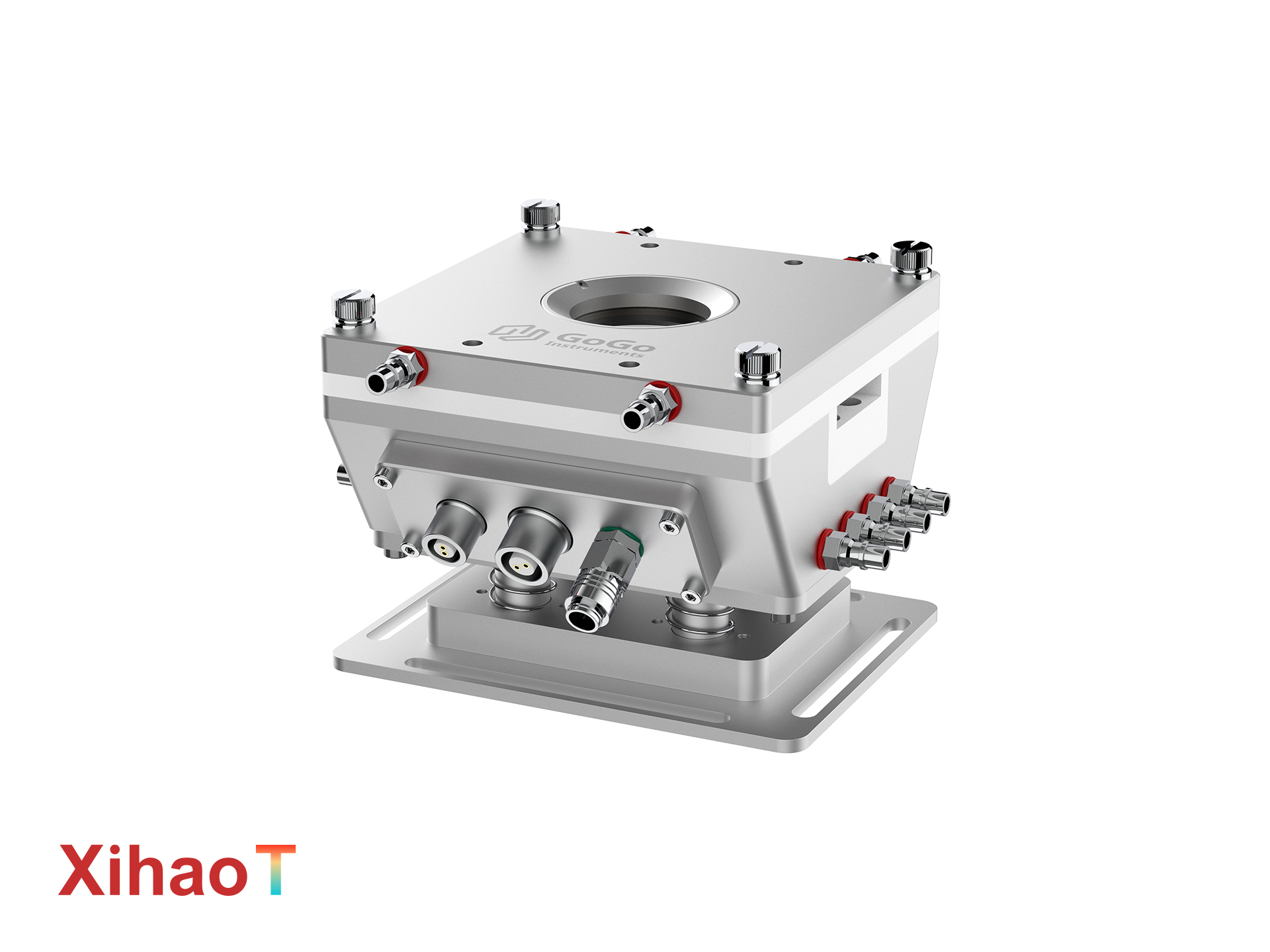

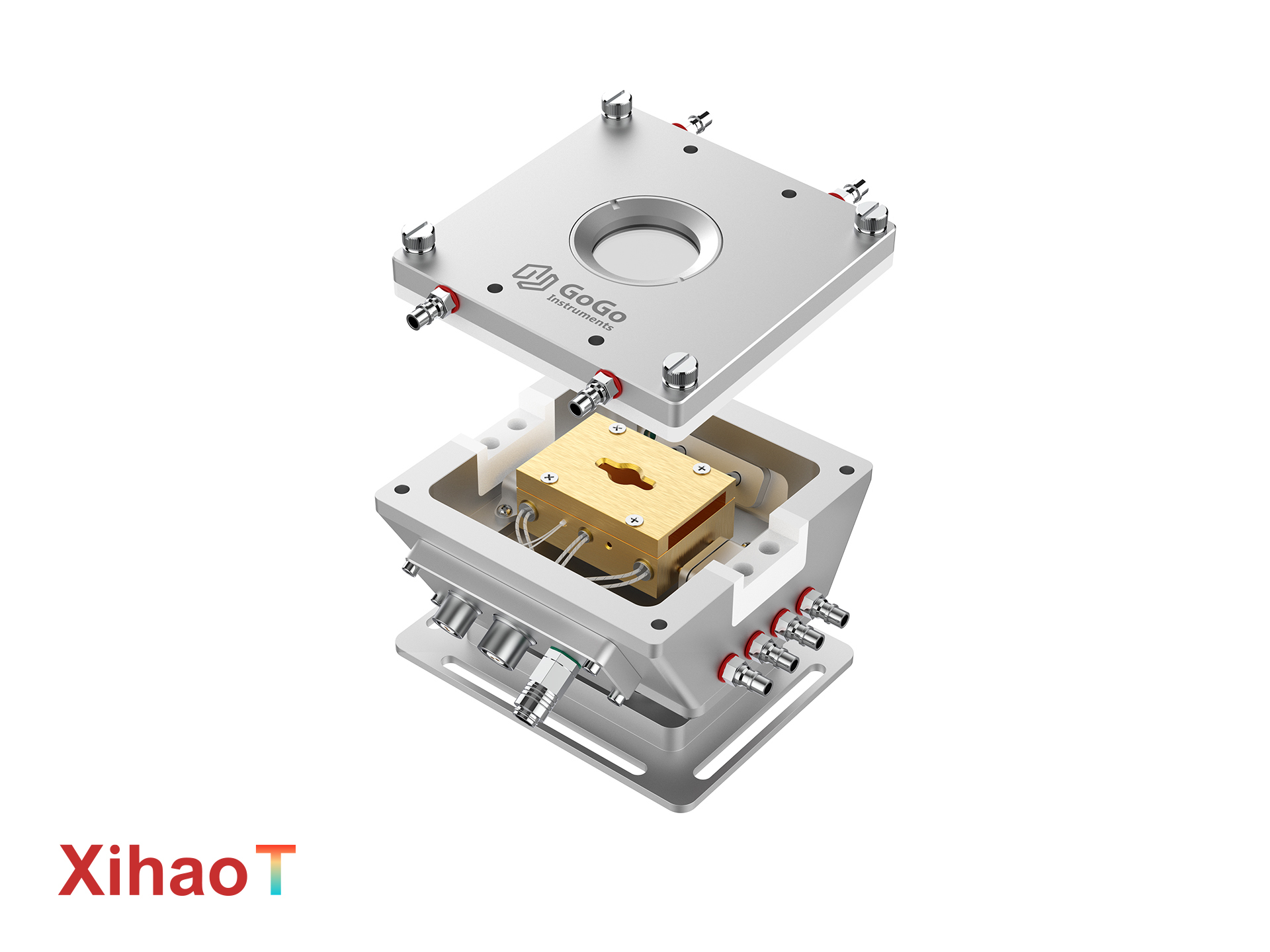

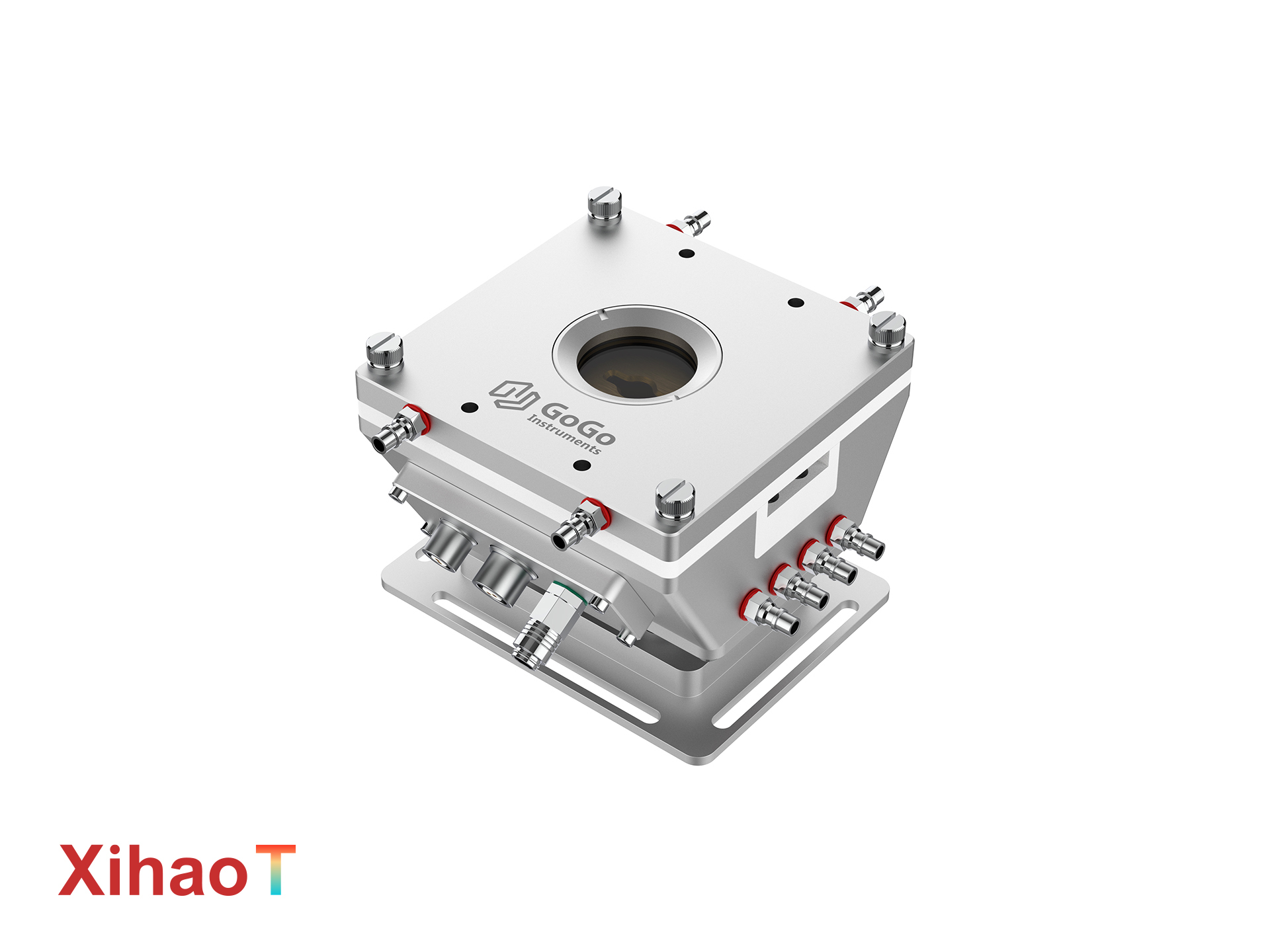

The GoGo UCH600-HT is a precision-engineered Temperature-Environment Extension Module specifically designed to integrate with horizontal universal testing machines. This system transforms standard horizontal testers into advanced platforms for in-situ material testing, enabling the characterization of stress-strain behavior across an extreme temperature spectrum from -190°C to 600°C with remarkable ±0.1°C stability. Featuring a robust copper sample holder optimized for horizontal force application and a top optical window, this Tensile Stage module allows researchers to visually monitor deformation and failure in real time while applying precise thermal profiles. Controlled by the unified TNEX software, it is the ideal upgrade for labs seeking to add sophisticated thermo-mechanical analysis to their existing horizontal testing infrastructure.

• Optimized for Horizontal Testing Platforms: Unlike generic chambers, this module is engineered specifically for the mechanics and spatial constraints of horizontal universal testing machines, ensuring seamless force transmission and easy integration without compromising the tester's native functionality or stroke length.

• Extreme Temperature Precision in a Compact Format: Delivers laboratory-grade thermal performance—cryogenic cooling via liquid nitrogen and rapid 100°C/min heating—within a compact, self-contained module. This brings powerful in-situ material testing capability to your existing bench without the footprint of a full environmental chamber.

• Enhanced Real-Time Observation & Analysis: The integrated top window provides crucial visual access to the sample during mechanical tests. Researchers can correlate thermal effects with physical events like necking, cracking, or phase changes as they happen, a core benefit of this advanced Tensile Stage.

• Plug-and-Play Integration with Intelligent Control: Designed for straightforward installation, the module comes with adaptable mounting solutions. The TNEX software provides centralized digital command over all thermal parameters, enabling automated, repeatable test sequences that sync with your tester's data acquisition.

• Certified, Cost-Effective Capability Expansion: Manufactured under ISO 9001, 14001, and 45001 certifications, this module is a reliable and strategic investment. It dramatically enhances your lab's testing scope and data quality at a fraction of the cost of a dedicated, fully integrated temperature-testing system.

This specialized horizontal Tensile Stage module meets the growing demand for advanced material testing in key industrial and research regions, including Southeast Asia, the Middle East, Russia, and Africa. It is an invaluable tool for university mechanical engineering departments, industrial R&D labs, and materials certification centers that utilize horizontal testers for polymer, composite, metal, and component testing.

1. How is this module adapted for horizontal testers?
   The UCH600-HT features a chassis and sample grip geometry specifically configured for the horizontal load path. Its internal design ensures the sample and thermal elements align correctly with the tester's actuators, providing accurate uniaxial force application under temperature.

2. What types of tests can I perform with this Tensile Stage module?
   Primarily designed for tension and tensile fatigue tests, its stable environment also supports other modes your horizontal tester enables, such as compression or shear, on suitably fixtured samples, all under controlled temperature.

3. How do I synchronize temperature data with my mechanical test data?
   The TNEX software logs precise temperature and time data. You can synchronize this log with the load and displacement data from your testing machine's software during post-processing using common timestamps, creating a complete thermo-mechanical data set.

4. Is the installation process complex?
   No. We provide detailed, step-by-step mounting instructions and adapter templates. The module is designed for tool-free or minimal-tool installation onto most common horizontal tester frames, allowing for quick setup.

5. What is included to get started?
   The package is a full thermal control system: the main horizontal chamber module, a programmable temperature controller, a cooling controller for liquid nitrogen management, a recirculating chiller, TNEX software, and all necessary cables, tubing, and mounting accessories.
